The Complete Wire Harness Assembly Machine Guide: Anatomy, Types, Standards & Selection

A wire harness assembly machine consolidates the cut–strip–crimp–insert–test workflow that once took skilled hands days into a single linked sequence — and at high volume it is the difference between a 12% industry-average defect rate and a 0.1% best-in-class line. This guide walks the anatomy module by module, the four automation tiers, the IPC/WHMA-A-620 standard that governs every crimp, a five-question selection framework, the payback math, and where the EV-driven equipment market is heading through 2030.

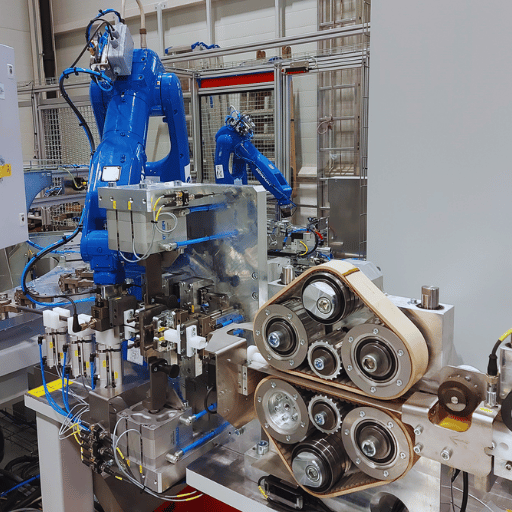

What Is a Wire Harness Assembly Machine?

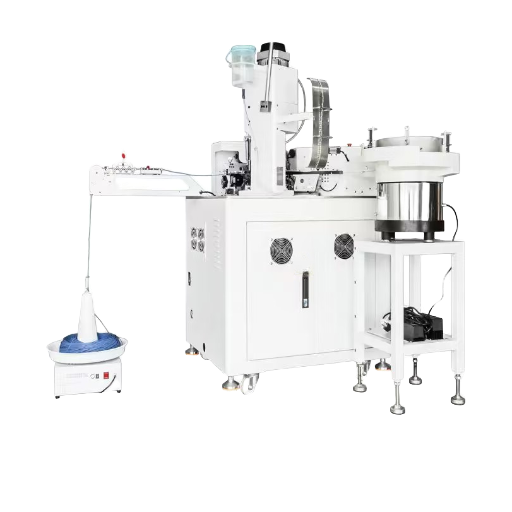

Wire harness assembly machines automate the joining of insulated wires, terminals, and connectors into a finished cable bundle. In its fully automated form, one machine measures and cuts each conductor to length, strips the insulation, applies a crimp terminal, marks the wire, inserts it into a connector housing, and runs a continuity test — all within a single guided sequence. Together these steps replace what used to be a manual production line of stations and operators.

Globally, wire harness machines and equipment market sales reached roughly US $103.52 billion in 2025 and is forecast to grow at a 7.2% compound annual rate through 2033, according to market data published in 2025. The pivot to 400V and 800V electric-vehicle architectures, the steady rise of ADAS (advanced driver assistance) sensor counts, and labor inflation in traditional manufacturing hubs are the three forces pushing buyers from manual benches to integrated machines.

What is wire harness assembly?

Wire harness assembly is the structured assembly process of routing several insulated electrical conductors along a defined path inside one of many possible wire harnesses, terminating each end with a crimp or solder joint, and binding the bundle so it can deliver power or signal between two or more points inside a vehicle, aircraft, machine, or appliance. It differs from cable assembly mainly in geometry — a harness branches and binds, while a cable assembly is usually a single straight run. Both processes share the same crimp and acceptance criteria under the IPC/WHMA-A-620 standard.

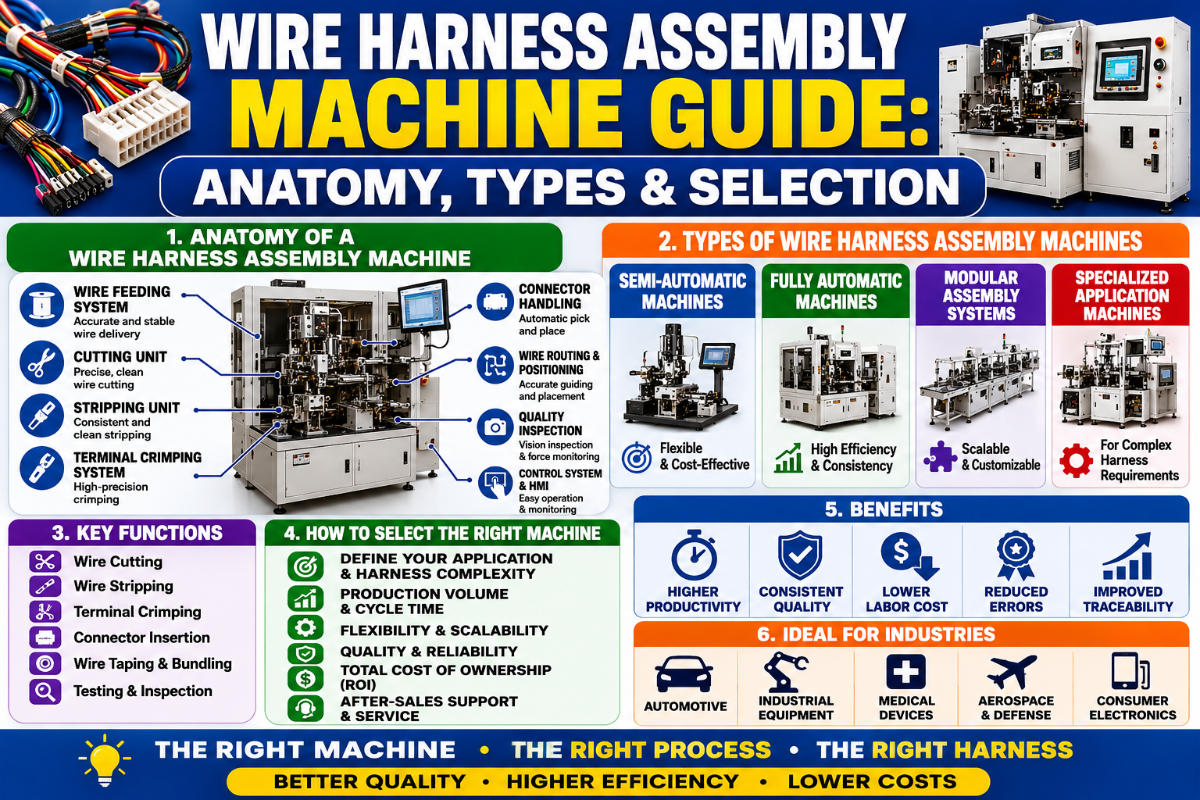

Wire Harness Machine Anatomy Tour — 7 Functional Modules

Walk through the Wire Harness Machine Anatomy Tour below — each functional module that a buyer should be able to match line-by-line against a vendor specification sheet. Treat any spec sheet that hides one of these modules behind a vague “fully integrated” claim as incomplete. Module-level decomposition aligns with USPTO 9,257,808 (integrated wire harness batch production with double buffer assembly).

“When buyers focus only on cycle time on the crimper, they miss the bigger payback. Biggest savings come from the testing and connector-insertion modules — those are where field failures originate and where automated force monitoring catches 94% of defects in real time, against roughly 65% with manual tools.”

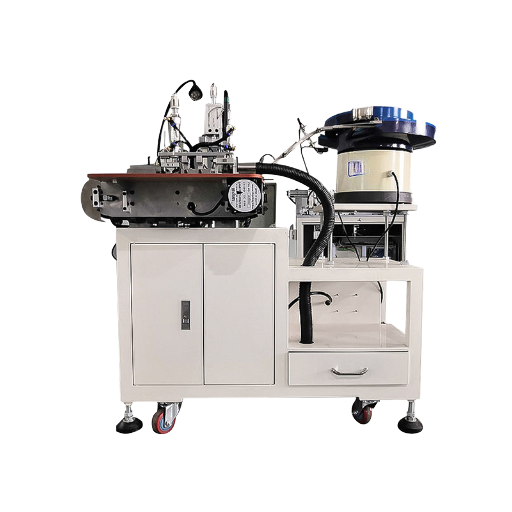

Machine Types by Automation Level — Four Tiers

Wire harness machines are not a single category. Treat them as four tiers, each fit for a different production volume and harness complexity. This four-tier framework aligns with manufacturing automation guidance from NIST’s Smart Manufacturing program, which distinguishes manual, semi-automated, automated, and fully integrated production cells. Choosing the wrong tier is the single most common buyer regret reported in the field.

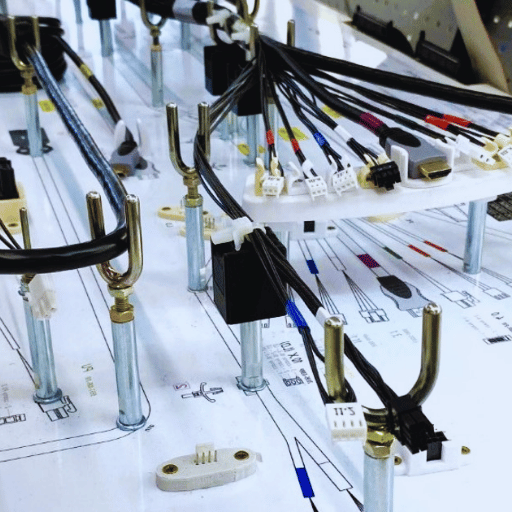

One hybrid case is worth calling out separately. Across complex automotive and aerospace work, the leading production model is not full automation but a mix — automated cells handle the cut/strip/crimp/test backbone, and skilled technicians take over for branching, taping, and final lay-out on a board. Industry analysts tracking the wire harness equipment market consistently flag this hybrid pattern as the actual best practice for harness complexity above roughly 80 circuits.

The Three Types of Wiring Harnesses Your Machine Will Process

Before you confirm a machine quotation, verify it handles the three harness families you actually build. Mismatches here are the source of expensive late-discovery rework. This taxonomy is documented in equipment patents like USPTO 9,536,641 (method of manufacturing automobile high-voltage wire harness), which separates loomed, conduited, and sealed/twisted constructions.

What are the three types of wiring harnesses?

Three families of wire harnesses are recognized across automotive, industrial, and aerospace practice. These wire harnesses each demand a different machine configuration to produce correctly: open loom (taped or tied bundles without an outer sheath, used inside enclosures), conduited or protective-covering harnesses (heat-shrink, braided sleeving, or rigid conduit, used where abrasion or chemical exposure is a risk — and the category that IPC/WHMA-A-620 Rev F expanded with new acceptance criteria in 2025), and sealed or twisted harnesses (twisted pairs for signal integrity, sealed connectors for IP-rated assemblies, common in EV high-voltage and underhood automotive).

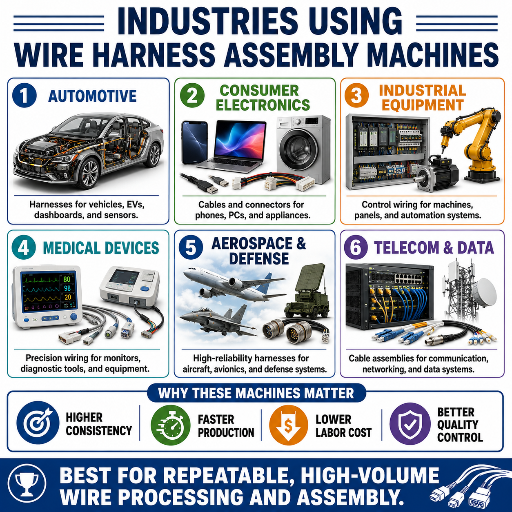

Industries Using Wire Harness Assembly Machines

Six dominant industries account for the bulk of installed capacity for machines that build wire harnesses. Each demands a different module mix, different IPC class fit, and different throughput envelope.

Across these six segments, a single observation holds: where harness complexity exceeds roughly 80 circuits and the per-vehicle or per-unit value is high, automation buyers gravitate to modular cells with closed-loop force monitoring rather than discrete single-process machines. Customers like AVIC, Corning USA, Sumitomo, LEGO, TCL, SONY, and Foxconn — many of them long-term ZEUEE cooperation partners — pattern-match to this configuration.

Scenario: a Tier 2 automotive supplier near Querétaro shifted in 2024 from semi-automatic stations to a modular cell after winning a 400V battery-pack harness program. The trigger was not throughput — semi-automatic stations could hit the daily count — but the program’s Class 3 pull-force requirement on every sealed terminal, which the manual crimpers could not document at 100% sampling. Within three quarters, the cell paid back the incremental CapEx through scrap-rate collapse from 1.1% to 0.07%.

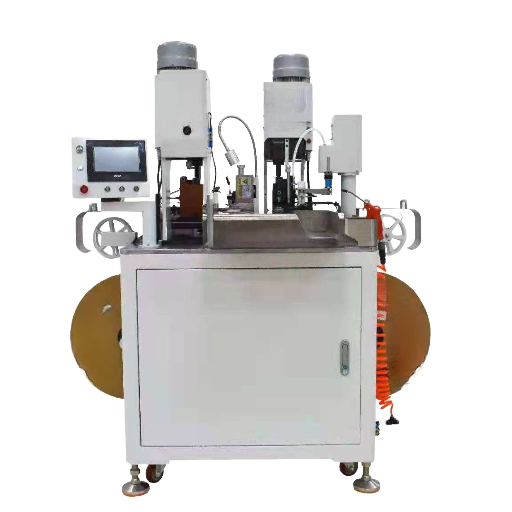

IPC/WHMA-A-620 Compliance Cheat Sheet for Machine Buyers

If a vendor cannot map every assertion in its data sheet to a clause in IPC/WHMA-A-620, treat the data sheet as marketing. The IPC/WHMA-A-620 Compliance Cheat Sheet below names the five clauses that matter most for machine evaluation.

Revision E (October 2022) remains the most widely accepted version in production today: 338 pages and over 700 color photographs distinguishing acceptable, process indicator, and defect conditions for every crimp, splice, and termination. Revision F (2025) tightens four areas in particular: clearer rules for mixed-class assemblies that combine Class 2 and Class 3 circuits in the same harness, updated pull-force tables and crimp cross-section guidance, refined visual criteria distinguishing Process Indicator from Defect, and new acceptance criteria for heat shrink, braided sleeving, conduit, and spiral wrap.

How much does IPC 620 certification cost?

Operator-level IPC/WHMA-A-620 Certified IPC Specialist (CIS) training runs US $400 – $900 per person for a 3 – 5 day course delivered by an accredited Master IPC Trainer, with recertification every two years at roughly half that price. Plant-level adoption costs more — closer to US $20,000 – $80,000 when machine recalibration, documentation upgrades, internal auditor training, and IPC standard purchase are included. Treat the certification as a multi-year program, not a single line item.

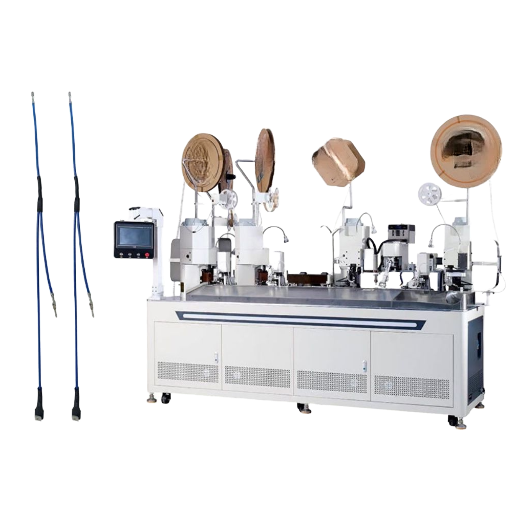

Five-Question Wire Harness Machine Decision Tree

Run a candidate machine through the 5-Question Wire Harness Machine Decision Tree before requesting a quotation. The tree maps five buyer inputs to one of the four automation tiers introduced earlier.

1. Annual volume. Below 50,000 finished wire harnesses per year, Tier 1 manual or Tier 2 semi-automatic dominates. Between 50,000 and 200,000, Tier 3 fully automatic single-process pays back. Above 200,000, Tier 4 modular cells are the floor.
2. Harness type mix. One or two stable harness families per quarter favors Tier 3 dedicated machines. Five or more families in changing volumes favors Tier 2 semi-automatic with quick-change tooling.
3. Wire gauge range. If 80% of your work is inside 0.5 – 2.5 mm², a standard Tier 3 cell fits. Below 0.13 mm² (fine-gauge electronics) or above 6 mm² (battery / power), specify an extended-range Tier 4 cell.
4. IPC class target. Class 1 — Tier 1 or 2 acceptable. Class 2 — Tier 2 with documented force monitor minimum. Class 3 — Tier 3 or 4 with 100% pull-force testing and data export are the only options.
5. Changeover frequency. More than one product changeover per shift, prioritize fast tool-change semi-automatic over high-throughput automatic. Less than once per shift, prioritize throughput.

Once you have a tier recommendation, work with a supplier that can configure within that envelope rather than push a single fixed machine. Explore the ZEUEE wire harness assembly machine series for tier-specific configurations.

ROI & Total Cost of Ownership — When Automation Pays Back

Payback math on a wire harness machine purchase rests on four components. Build each one out before signing a purchase order, and the decision drives itself. This four-component framework is consistent with manufacturing-investment guidance published in the U.S. Bureau of Labor Statistics occupational data for wire-harness assemblers, which anchors the labor-cost variable.

Payback windows land between 18 and 36 months for Tier 3 single-process machines and 24 to 48 months for Tier 4 modular cells. Programs with Class 3 audit requirements often justify cells faster because the alternative — manually documenting 100% pull-force on every terminal — runs into labor costs that automation eliminates outright.

Common Defects, Operator Role, and Quality Control

Five defect categories account for the bulk of field failures across wire harnesses produced on these lines. Defect typology matches the failure-mode classification documented in USPTO 5,740,602 (wire harness assembly system), which lists insulation damage, terminal misalignment, and continuity faults as the dominant categories. Crimping originates the first three failure modes; insertion and testing originate the last two.

Operator scope changes meaningfully as the line moves up the four tiers, and operator efficiency shifts from manual throughput to inspection accuracy and dashboard monitoring. On a Tier 1 manual bench, the operator handles every step: measure, cut, strip, crimp, route, and test. On a Tier 2 semi-automatic line, the operator loads materials and inspects output. On a Tier 3 or 4 fully automatic cell, the operator becomes a supervisor and inspector — loading reels, monitoring force-monitor dashboards, intervening only on alarms. Field data shows automated force monitoring catches 92% of position and force defects in real time, against 65 – 68% with manual tools. Skill shifts from manual dexterity to data interpretation.

Industry Outlook 2025 – 2030 — 800V EV Automation Roadmap

Buyers should plan around four inflection points between 2025 and 2030 — captured in the 800V EV Automation Roadmap below. Each row buyers should plan around between 2025 and 2030. Each row pairs a market driver with the harness-line impact and the buyer-side action it triggers.

“Industry analysts tracking the wire harness equipment market consistently flag 800V EV architecture as the single largest 2026 capex driver — but the more interesting signal sits underneath. Hybrid cells with manual final lay-out remain the default for harness complexity over 80 circuits, and that pattern is unlikely to reverse before 2030.”
