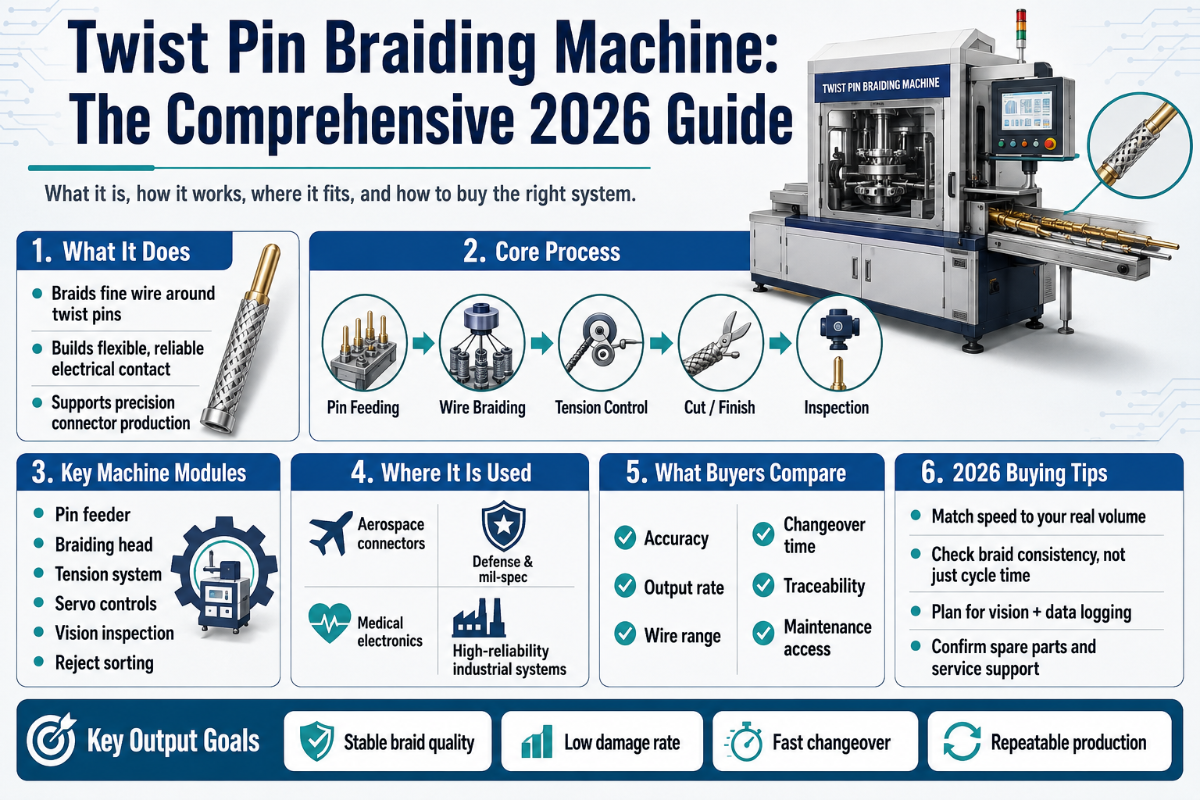

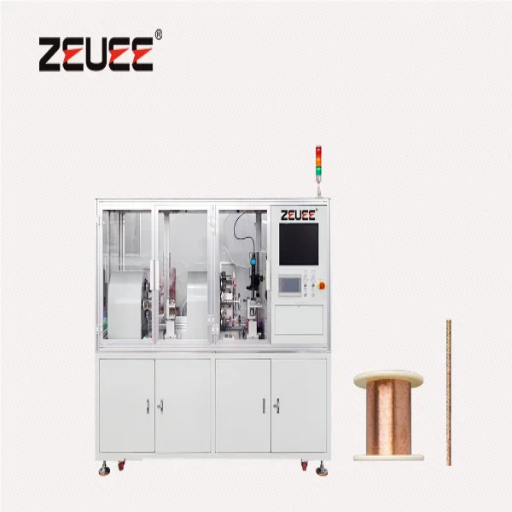

Twist Pin Braiding Machine: The Comprehensive 2026 Guide

Twist Pin Braiding Machine: A Field Guide to Carrier Counts, Standards, and Selection

Published 29 May 2026 · Reviewed by the ZEUEE engineering team

A twist pin braiding machine is a category of small-carrier wire braiding cell purpose-built to weave 10-strand beryllium-copper cages around a mandrel, forming the hyperboloid contact element used inside MIL-DTL-83513 Micro-D and MIL-DTL-32139 Nano-D connectors. It looks like a wire-cable braider, but the carrier count, lay-length geometry, and the inspection pipeline are tuned for contact-scale work, not over-braid harness work. This guide walks through what the machine is, how it actually works, the five categories buyers confuse on RFQ day, a five-question buyer tree for spec’ing one, and what changes in 2026.

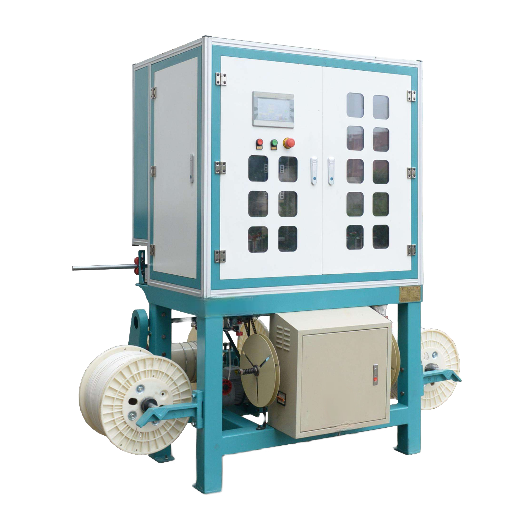

What a Twist Pin Braiding Machine Actually Is (And Why It Exists)

Search “wire braiding machine” and the top names — Wardwell, Herzog, Steeger, Cobra — all sell different equipment to different industries. So why does a separate “twist pin braiding machine” category exist at all? Because the contact element inside a Micro-D or Nano-D connector is not the same artifact as a wire shield over a cable harness. It is a 10-strand cage of fine beryllium-copper wire braided around a tiny mandrel, then expanded into a hyperboloid shape so that when a mating pin pushes through it, every strand makes line contact with the pin. That gives high contact density at very low mating force, which is why MIL-spec aerospace and defense connectors specify it.

A base standard governs the category: MIL-DTL-83513, last revised to Rev G on 29 October 2008. It defines microminiature rectangular shell connectors with 0.050-inch contact pitch and 9 to 100 contacts. Its smaller sibling, MIL-DTL-32139, first issued 16 December 2003 and revised to Rev A on 23 June 2006, tightens the pitch to 0.025 inch — the Nano-D format. Braided contacts are not optional under either spec; they are how each one earns its mating-cycle life and its low-contact-resistance numbers. Build the wrong cage and the connector fails qualification.

So when a procurement engineer asks “is this just a wire braider?” the right answer is: same physics, very different machine. Wire-harness over-braiders operate on millimeter-scale wire and count coverage percentage. Twist pin cells count strand-to-mandrel angle and lay-length consistency at the level of single microns. Different problem, different equipment. ZEUEE’s C49-BR braiding cell is built for this second case.

Inside the 10-Strand Cage: How the Braid Forms Around a Mandrel

Here is the mechanical picture. Picture a horn gear: a notched disk driven by a spur gear underneath, where bobbins ride from notch to notch on adjacent gears, weaving their way around a central axis. This was Simon Wardwell’s 1922 innovation — moving the strands instead of moving the carriers, which let a circular path replace the older sinusoidal carrier track. Modern carrier counts in the twist pin range are 16, 24, 32, and 48. Each carrier holds one bobbin; each bobbin pays off one or more very fine BeCu strands.

For a 10-strand twist pin cage, the typical setup pairs 16 carriers (or 32 for higher coverage) with selected bobbins active, and the wire runs through a tensioner-clutch assembly so that every strand sees the same payoff tension. Fine wire — 0.04 mm to 0.30 mm beryllium copper, generally to the chemistry of UNS C17200 — meets the mandrel at a precise angle set by the horn-gear speed and the take-up speed. That angle is the lay length, and it is the most spec-critical number on the machine. Wire-industry references give the basic productivity equation as Lay length × horn-gear speed × 4 × 0.06 / number of carriers = braid metres per hour, which captures why pushing lay length to compete on cycle time has hard limits.

10-Strand Beryllium-Copper Braid Anatomy

“On a twist pin cell the lay length and the tensioner balance set the contact resistance you measure six months later in the field. Get the horn-gear backlash wrong and you can chase a defect for months and never see it on the CCD.”

— ZEUEE engineering team, on a recurring procurement question

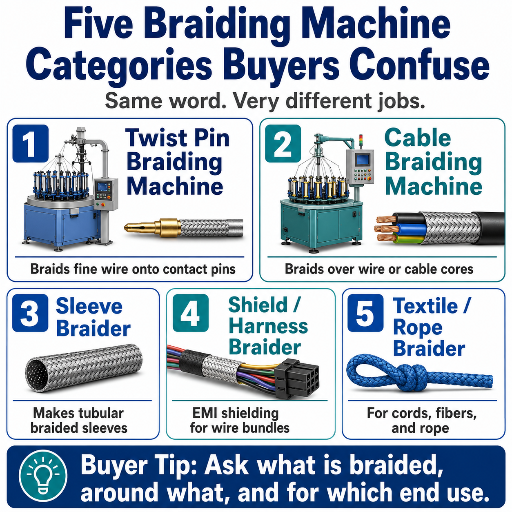

Five Braiding Machine Categories Buyers Confuse

Most RFQs for a “braiding machine” actually need one of five different machines, and the suppliers selling each one rarely cross-compete. Confusing the categories is the cheapest way to waste an evaluation cycle.

5-Category Braiding Machine Catalog

Notice that twist pin and harness over-braid share carriers and the same horn-gear physics, but the wire diameters and inspection standards diverge by an order of magnitude. Harness over-braiders have no inline CCD strand-count check because losing one of 96 carriers on a 50% coverage shield is recoverable. Twist pin cells that drop one of 10 strands have just produced a reject. The ZEUEE family includes both — the cut-strip-crimp-insert-test wire assembly lines and the connector crimping machine sit downstream — but they are not the same equipment.

Where Twist Pin Braiders Earn Their Keep: Defense, Aerospace, and Medical Implant Cables

Walk through a connector reliability database and the twist pin contact appears in narrow, high-stakes places. Six application classes drive most of the demand for these machines:

1. Avionics interconnect — Micro-D connectors mate the bay-to-bay flight-computer harness on most modern airframes, working under MIL-DTL-83513.
2. Satellite payload harness — Nano-D, governed by MIL-DTL-32139 Rev A, dominates payload deck wiring where mass and pitch density override unit cost.
3. Submarine and undersea cable assembly — twist pin contacts survive vibration and hermetic pull-test more reliably than stamped sockets at the same scale.
4. Cochlear implant lead — Steeger USA explicitly lists “leads” alongside catheters and stents in its medical braider portfolio; fine-wire braided contacts terminate the lead at the receiver.
5. Neuro-stimulator lead — same family, different application; the contact must survive millions of micro-flexures.
6. EV high-voltage backup contact — emerging use, where redundant braided contacts back up the primary terminal for safety qualification.

Common to all of these applications is a written specification — MIL-DTL-83513, MIL-DTL-32139, IEC 60601-1 for medical electrical safety, ISO 14708-1 for active implantables, ESA’s ECSS-Q-ST-70-08 for space-grade interconnects. None of them allow “we built it close to spec.” Any twist pin braiding machine selling into these markets therefore has to be qualified to one of these standards, and a buyer’s job is to read the qualification packet, not the brochure.

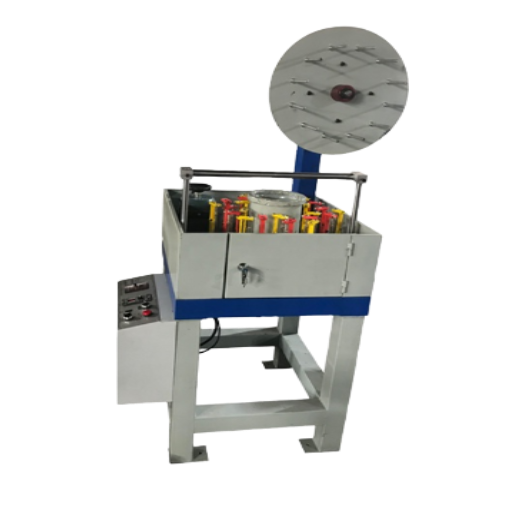

The 5-Question Buyer Tree: Which Machine Configuration Fits Your Production Need?

Spec’ing a twist pin braiding cell falls apart fast if buyers shop on carrier count alone. Walking five questions in order, in this order, lands most teams on a defensible configuration before the first quote arrives.

How many carriers do I actually need?

Answer this from the cage geometry backward, not from the brochure forward. A 10-strand twist pin cage built on a 0.4-mm mandrel does not need 48 carriers. Industry references repeatedly list 12, 16, and 24 as the most popular carrier counts for fine electrical-conductor braiding. ZEUEE’s 16-carrier configuration handles the Micro-D mainstream; 24 and 32 cover Nano-D and high-coverage variants; 48 belongs in over-braid territory, not contact assembly. Over-spec’ing at this step is the single most common procurement waste case in this category.

5-Question Twist Pin Braiding Buyer Tree

Notice that none of those questions ask about brand. Brand decides itself once the configuration is firm. Request a custom RFQ only after the buyer tree gives you the same configuration on two independent passes.

Reading the Spec Sheet: MIL-DTL-83513, MIL-DTL-32139, and the Numbers That Actually Matter

Supplier spec sheets are written to sell, not to qualify. Your job is to find the eight numbers a MIL-grade twist pin braider has to hit and to check whether each one is quoted or hand-waved. Below, a cheat sheet maps each parameter to the section of the governing standard where it appears.

MIL-Spec Compliance Cheat Sheet

Two of these — lay length consistency and final braid OD CV — are statistical numbers, not pass/fail flags. If a supplier cannot quote a CV, the supplier does not have the inline measurement to compute one. That is information enough.

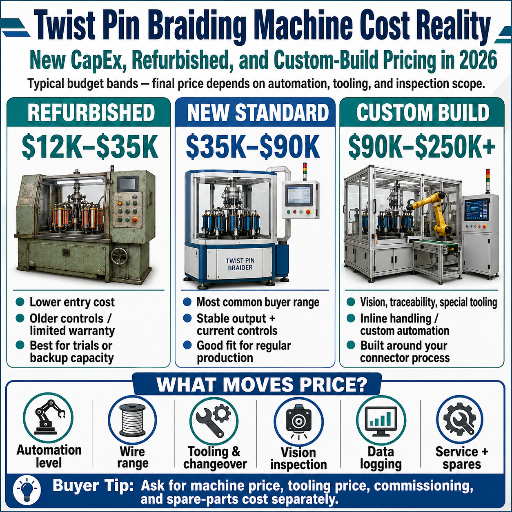

Cost Reality: New CapEx, Refurbished, and Custom-Build Pricing in 2026

Public quotes are scarce for twist pin braiders, but a three-tier procurement envelope describes what buyers actually see in the market. Bands below are reported price bands from public listings (entry tier) and synthesised from quotation patterns (commercial and mission-critical tiers). They are not precise dollar quotes.

3-Tier 2026 Pricing Table

Three line items get under-counted in every first quote we have seen on this category: changeover tooling (commonly $5,000 – $20,000 per mandrel family), the multi-year spares plan (horn-gear bearings, clutch springs, tensioner cartridges) and operator training time for first-article inspection. Budget for those before the depreciation table is finalised. Upstream and downstream cells — the twist pin cutting and welding stage and the wire stress relief stage — also have their own CapEx that has to be planned alongside the braider, not separately.

Five Production Failure Modes Twist Pin Braiding Operators Actually Encounter

Reliability does not come from the machine name on the purchase order. It comes from understanding how these machines actually fail under real production stress. Five modes show up repeatedly across published failure-mode analyses and operator interviews.

5-Mode Production Failure Catalog

Notice that three of the five (lay length drift, strand break detection, CCD false-pass) are detection problems, not prevention problems. Machine vendors sell the prevention story; operators carry the detection burden. That asymmetry is why the color band identification machine immediately downstream often catches braid-stage defects first — colour-band print misalignment is the inline tell-tale of an upstream cage that was already off-spec.

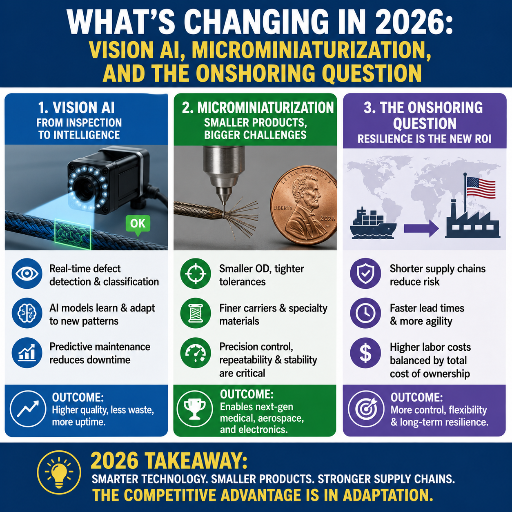

What’s Changing in 2026: Vision AI, Microminiaturization, and the Onshoring Question

Three forces reshape the twist pin braiding market in 2026, and each one is worth a slot on the procurement planning agenda.

Vision AI is replacing rule-based CCD on the formation zone. Frontiers in Materials published a 2023 study on optical inspection of the braid formation zone — one of several peer-reviewed efforts moving the industry from hand-tuned thresholds toward learned defect classification. Buyers spec’ing a braider with a five-year horizon should ask whether the CCD subsystem allows model updates from the vendor’s defect library, or whether it is frozen at install time.

Nano-D contact density continues to compress. MIL-DTL-32139 already specifies 0.025-inch pitch, and the spec family has shipped two amendments. Patent records (USPTO 8,142,236, electrical connector with improved density) signal further density work in flight on the IP side. A braider qualified only for Micro-D pitch may not bridge to the next density step without a tooling change.

Defense onshoring pressure is shifting where braiding capacity sits. U.S. and allied defense procurement patterns increasingly require domestic or allied-source connector content for sensitive programs. This is not a verbatim CHIPS Act provision for connectors — but it is a procurement-pattern reality across NDAA-funded contracts. Capacity decisions made in 2026 should factor in that the next ten-year amortisation may cross a domestic-content cliff.
