Blind Mating Connector Machine

Manual Pin Insertion Bottleneck — Why Self-Aligning Machines Solve It

Pin insertion of blind mate connectors can be at most 200-500 inserts per hour per operator. This speed becomes a bottleneck, especially if the connector housing has a tight pin to pin spacing tolerance. Although a skilled person can quickly install pins in place, inconsistencies in their depth of insertion and seat force result in around 3-5% of retention failure, and if a production run extends to two or three shifts, rejection rate increases dramatically.

Root cause sits in mechanics.

Blind mate connectors are designed to be joined without visual adjustment – this is made possible by the float of interconnects, guide pins and an elastomer system built into the housing. When pins are installed manually, inconsistencies in the pins’ angles of insertion and depth of assembly cause this mechanism’s float compensation to lose 0.3-0.8 mm per misplaced pin, and compromise post-assembly mating stability.

A self-aligning blind mating connector machine solves this with three mechanisms synchronized in their movements.

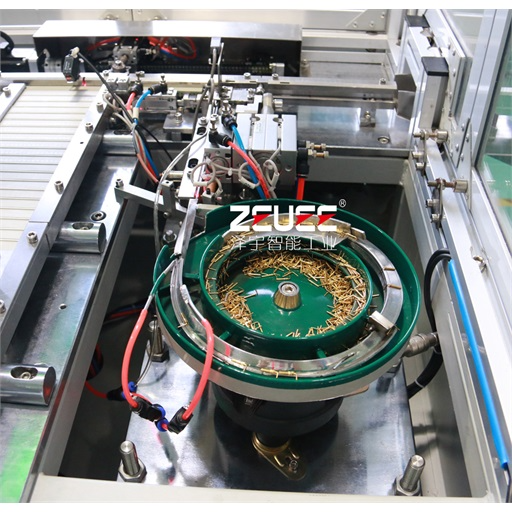

Pin position pitch is controlled precisely by a servo-driven system, an oriented feed of pins by a vibratory bowl, and sensor feedback on insertion force detects problematic material. With the A15-ZY02-02 this pattern includes AirTAC pneumatics, linear rails by Japan THK and hardened steel components (S136 hardened), as the pattern was developed and engineered back in US Patent 4815986A in 1989. Viability of this design rests on precise movement and accommodation provided by the hardware and that feature continues today to dictate the precision demanded by any self-aligning mechanism.

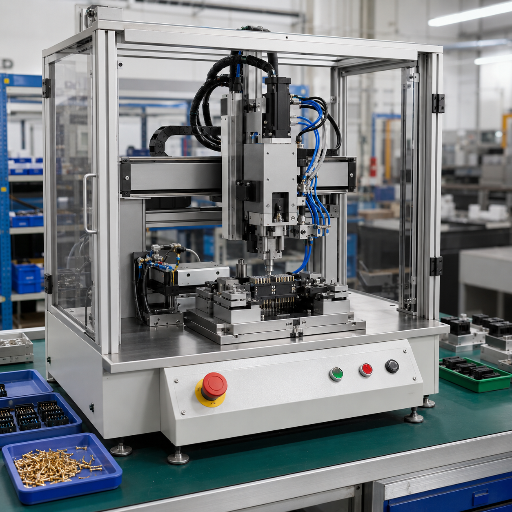

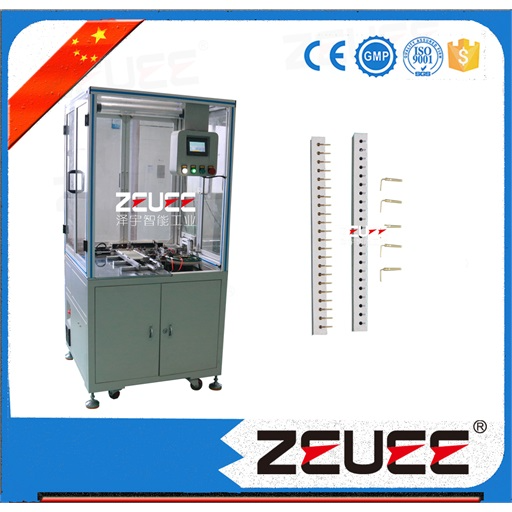

ZEUEE A15-ZY02-02 — Self-Aligning Blind Mate Pin Insertion Machine Specs

A mid-volume custom connector solution: the A15-ZY02-02 bridge is made to fill a specialized gap between high speed, high volume PCB pin insertion machines and manual assembly of blind mate connectors, when a full automated cell is too expensive and manual labor becomes the bottleneck. Built as a self-contained semi-automatic cell, the A15-ZY02-02 runs, with user loads plastic housing, and the rest (pin feed, insertion) are automatically executed and controlled. All actuators are servo driven and monitored with sensors.

Specification	Value	Component Source
Model	A15-ZY02-02	ZEUEE original design
Throughput (insertion rate)	15-20 PIN/min	Servo-driven, validated per cycle
Pneumatic operating pressure	0.5-0.7 MPa	AirTAC pneumatic system
Machine dimensions (L × W × H)	850 × 800 × 1750 mm	Standalone cell, no conveyor required
Plastic housing feeding	Manual loading	Operator-loaded, flexible fixtures
Pin feeding	Automatic, vibratory bowl	Orientation-controlled delivery
Pin spacing control	Servo motor	Programmable pitch, no manual indexing
Linear motion guides	Japan THK precision rails	Original Japanese supply chain
Precision module material	S136 hardened tool steel (Japan)	Finished by precision grinding
Control system	Mitsubishi PLC + HMI touchscreen	MELSEC iQ-R family, global service network
Sensors / Detection	Material presence, missing material, abnormal alarm	Sensor feedback to PLC, info display
Pneumatic components	AirTAC (亚德客 original)	Asian industrial standard

Component selection plays an important role, since a functional self-aligning blind mate mechanism requires an accuracy of the movements at sub-millimeter level. THK linear rails transfer feedback force data to the Mitsubishi PLC, that consequently limits the actuator stroke according to the real-time force feedback. If the system detects anomalies such as faulty housing, missing previous pin, contamination etc., it will halt operations automatically and signal an alarm to the operator rather than blocking the assembly process.

Engineers looking at the A15-ZY02-02 and the TE Connectivity P360 or P550, in other words in the class of high-throughput PCB pin insertion machines ask the same first question: Why another machine for blind mate?. In fact it boils down to the same application boundary. TE’s P machines are best fitted to the task of handling PCB through-hole components, including press-fit; A15s on the other hand are suited to electrical connector blind mate assemblies with custom plastic housings, and custom punch, pins, and terminals per customer SKU. Both are very good machines for their purpose, just not as useful in the other case as the former or in this one.

“We specified S136 hardened steel for the precision modules instead of standard 45# steel because the bowl feeder feeds 8 to 12 different pin geometries across a typical customer’s product range — softer tooling would deform within 200,000 cycles. S136 finished by precision grinding holds tolerance across at least 2 million insertion cycles in our QA tests.” — ZEUEE R&D Team, A15 Platform Engineering Notes

Pin Insertion Machine Selection Matrix — Match Your Application

We group the pin insertion machines into four families by volume (throughput) and pin form factor. Use this matrix to determine if the A15-ZY02-02 will work in your specific application, or if you need the high volume class machine for pcb production.

Application Profile	Throughput Need	Recommended Class	ZEUEE Fit
High-volume PCB through-hole / press-fit pin	10,000-18,000 /hr	Fully-automatic high-speed class (TE P360/P550, AMS, Fuji)	Not recommended — different application
Mid-volume custom blind mate / wire-to-board / housing-based	900-1,200 /hr (15-20/min)	Specialty self-aligning semi-automatic	✅ A15-ZY02-02 designed for this niche
Mixed-product line, <500K units/yr, frequent changeovers	Variable, 600-1,200 /hr	Specialty semi-automatic with quick-change tooling	✅ A15-ZY02-02 with custom fixture kits
Prototype / R&D / under 100K units/yr	200-500 /hr (manual class)	Manual or handheld pin inserter (Visumatic VIN-700 class)	Possible but underutilized

Pin Insertion Machine vs Manual Insertion — Side-by-Side Comparison

There are seldom a scenario where the right choice is based purely on the inherent rate of manual labor vs semi automatic insertion vs automatic pin insertion machines but rather on cost of overall ownership per product mix, how and where labor is factored and at what rate the product passes/ fails quality. Below we will do the comparisons with real industry throughputs and actual operating figures rather than assumptions.

Dimension	Manual Insertion	ZEUEE A15-ZY02-02 (Specialty Semi-Auto)	High-Speed Fully-Auto (P360 class)
Throughput (inserts/hour)	200-500	900-1,200 (15-20 PIN/min)	10,000-18,000
Setup time per product change	30-60 min (operator retraining)	10-20 min (fixture + program swap)	30-60 min (conversion kit)
Operator requirement	1 fully skilled per machine	1 semi-skilled per machine (load housings)	0.25-0.5 per machine (supervisor only)
Insertion depth consistency	±0.3 mm typical hand variance	Servo + sensor-controlled, repeatable	Servo + force monitoring, repeatable
Reject rate (retention failures)	3-5% across shift duration	Reduced via in-cycle anomaly detection	Lowest, with full force monitoring
Best-fit volume range (units/yr)	<100K	100K – 500K (mid-volume)	>500K
Capital cost class	Labor-intensive (zero capex)	Mid-range capex	High capex (P360-class units)
Best for blind mate / custom housings	Yes, but bottleneck	Yes — designed for this niche	No — designed for PCB thru-hole
Maintenance downtime risk	None mechanical, but operator fatigue lowers consistency	Predictable wear on heavy duty fixture components; remote diagnostics shortens downtime	Higher complexity, more spare-parts footprint
Productivity gain vs manual baseline	1× (baseline)	~3× productivity per operator-hour	~30× productivity, but volume must justify capex

The center column covers those of many connector makers within the 100k-500k units/year range where the engineering efforts for ZEUEE are focused. This semi-automatic class isn’t a cheap alternative – it’s precisely suited to a production reality that won’t support a P360-level investment.

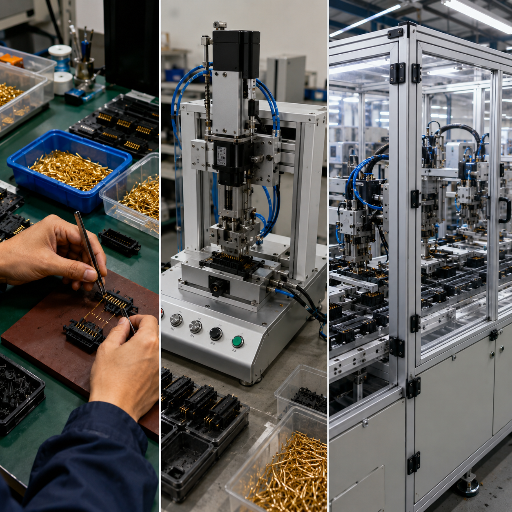

Pin Insertion Machine vs Manual Insertion

TCO Framework

How Mid-Volume TCO Compares Across the Three Classes

There are five inputs to determining the total cost of connector assembly machinery ownership: cost of the machinery investment, annual operator labor cost (including a 30-45% benefit load), annual maintenance, defect costs, and the amount of your production volume covered by the throughput. Here is that basic formula also seen on industry automation roi calculators-utilized in over 2,500 real-life projects.

5,0, Payback Period (years) = Equipment Cost / Annual Labor Saved + Quality Gains (Annual Maintenance)

For Specialty Semi Automatic Machines

Field deployment schemes on these models within the 100K to 500K units per year range usually result in a payback of around 1.5 – 3 years when they are used to replace 2-3 manual operators per shift, and the variation there is due to your specific product complexity and labor rate. For an accurate number, however you need to feed us with your real production volume, your current labor costs and reject rate base-Line (you can play with our calculator down this page)

Connector Assembly Applications — From Wire-to-Board to High-Voltage

Blind mate connectors and the blind mate machine tools used to produce them have a niche in industry: those applications where connector-to-connector mating occurs in locations or conditions which prevent visual line-up. Rack-mounted server backplanes, modular avionics, robotic tool changers, electric vehicle battery packs, medical device modules, and aerospace umbilical disconnects all require self-mate female connectors to be capable of self-routing.

Out of the box, the A15-ZY02-02 is configured for these connector families:

Wire-to-board blind mate connector modules

– typical in control modules, sensor bundles, or instrument clusters where service technicians are not able to visually locate mating connector position

Board-to-board multi-board connector modules with passive float

– fit in stacked PCB applications such as industrial control, telecom backplanes and production test equipment

High-high-voltage and high-large-current blind-mate

– battery pack interconnects for new energy applications, with insertion force characteristics tailored to the terminal contact line gauge

Various RF-power-and-signal/ground combinations in the same housing

– similar to Amphenol Floating Mate or Positronic Stellar series but designed around specific OEM custom panels or receiver interfaces

Additional fixed process-service steps performed by a custom plastic housing

– the A15-ZY02-02 is designed for operator-loaded custom housings, precisely that stage of assembly where PCB-class high-speed machines disappear

Industries currently deploying ZEUEE A15 platform products within ZEUEE’s existing installed base include automotive wire bundle and cable assembly, 3C consumer electronics, aerospace electronics, high-precision medical devices, automated warehousing equipment, electric vehicle high-voltage battery pack components, and consumer appliances – the diversity reflects 20 years of engineering experience developing automation equipment for diverse product sets rather than a single industry vertical.

Standard base A15 platforms are often modified with project-specific fixturing kits, sensor packs, and probe sets. Custom changeover kits able to switch between 8 and 12 SKUs on a single fixture in production have become a regular category of deployment. On upstream wire bundle and cable lines, customers load PCBs of crimped terminals before installing the terminal in the pin insertion process; ZEUEE can provide that upstream crimp process together with ZEUEE’s A15 pin insertion equipment as a complete upstream provider solution for customer production lines.

Customer Results — 30+ Countries, 10,000+ Cases in 20 Years

The strongest evidence of ZEUEE’s history of success is in the actual customer list – the list of some of the organizations’ lines that have operated pin insertion equipment and connector assembly automation manufactured by ZEUEE since 2005.

Long-Term Customers Across 30+ Countries

AVIC China Shipbuilding GAC Group Corning USA Hunter TE Sumitomo Japan LEGO Denmark TCL SONY Foxconn

Aerospace Electronics

Custom Blind Mate Connector Cell

+3 shifts replaced

Aerospace tier-1 supplier replaced a three-shift manual pin insertion line with a single A15-class cell, freeing operators for higher-value wire-bundle assembly tasks. Connector retention failure rate dropped to within IPC-A-610 Class 3 tolerance.

New Energy / EV Battery

High-Current Blind Mate Interconnect

100K units / yr

New energy battery pack manufacturer deployed two A15-class cells for 100K-unit annual production of high-current blind mate pack interconnects. Mitsubishi PLC integration allowed batch traceability across the full production run.

3C Electronics

Mixed-Signal Connector Production

8 housings managed

Consumer 3C electronics manufacturer uses one A15 platform across 8 different mixed-signal connector housings, with fixture changeovers handled in under 20 minutes between product runs — well below the 30-60 minute industry norm.

Certifications & Compliance — ISO 9001:2015 + CE + 100+ Patents

Procurement teams seeking to verify the credentials of B2B industrial machinery equipment suppliers face a problem: anyone can put “ISO certified” on a website. Real signals that carry weight when evaluating connector assembly equipment purchase decisions are the specific parameters that remain an artifact after an on-site visit — registration numbers, patent claims, membership in national industry groups and trade groups, and the specific ISO standards that the supplier’s quality records actually follow.

32+ Invention Patents Registered with CNIPA

68+ Utility Model Patents Granted across A15 platform

10,000+ Cases Built Since 2005 founding

30+ Countries Served Active installed base

National Intellectual Property Advantage Enterprise

ISO 9001:2015 Quality Management System

Certified by accredited body. Quality records cover design, production, installation, and after-sales service lifecycle.

CE Marking

Compliant with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU for industrial automation equipment.

National High-Tech Enterprise (China)

Granted by Ministry of Science and Technology of China. Recertified every three years against R&D and patent thresholds.

SRDI Enterprise (Specialized, Refined, Distinctive)

Designation for SME manufacturers contributing specialized industrial technology. Includes Patent Demonstration Enterprise status.

Vice President Unit — Guangdong Robot Association

Industry association leadership position. Council Member of Shenzhen High-Tech Industry Association and China Intelligent Manufacturing Industry Alliance.

IPC Standards Alignment

Production process records reference IPC-A-610 acceptability criteria and IPC J-STD-001 requirements for connector assembly customers requiring electronics manufacturing compliance.

Aside from what you can verify on paper, on-site supplier audit quality signals include documented inspection and quality assurance procedures at all manufacturing steps, subassembly release checks, and packaging sustainability policies. In-house process records ensure every shipped machine is inspected against specifications at four points before leaving the Taihe factory — electrical safety, pneumatic leakage, repeatability and packaging — and this efficiency focus lets ZEUEE continue supporting its patent portfolio as described above while maintaining high production rates.

Procurement Guide — Lead Time, MOQ, After-Sales (Transparent Framework)

Virtually every website sellingpin insertion machines and connector assembly equipment offers the same answer to requests for pricing information: “Please contact us for a quote.”

Pricing Factors Framework

Connector Geometry & Pin Count

Pin diameter, length range, pitch, and total pins per housing drive fixture tooling cost. Wider geometry range = more fixture sets = higher fixture component count.

Throughput Class

Standard 15-20 PIN/min versus custom higher-throughput cell layouts. A standard A15-ZY02-02 ships with the original parameter envelope; custom envelopes add engineering time.

Certification Scope

CE marking is standard. Additional regional certifications (UL, CSA, KC, EAC) require filing work and certified test reports.

Integration & Communication Layer

Standalone cell versus integration into existing MES/SCADA system. Mitsubishi PLC supports MELSEC iQ-R EtherNet/IP, Modbus TCP, and OPC UA — the integration scope determines engineering hours.

Logistics & Installation Region

FOB Shenzhen versus on-site installation by ZEUEE engineers. An installed base in 30+ countries puts local agent networks in place for most markets.

After-Sales Service Tier

Remote diagnostics via Mitsubishi GX Works3 is included. Optional tiers add on-site response SLA, spare parts inventory commitment, and extended training. Service tier choices affect commissioning timeline more than equipment cost.

At minimum, you need your pin and electrical connector target geometry (or actual samples) in hand, annual volume expectations, local certification standards, and whether or not the new equipment needs to integrate into other process machines such as pick and place robot or vision inspection equipment. Submit these inputs, and an actual price quote and lead time, will be provided within the business week; questions about applications can be handled directly with application engineers rather than sales staff.

[Send in your pin/housing sample and the above inputs for your personal quote.]

Engineering & Procurement Tools for Blind Mating Assembly

Pin Insertion ROI Calculator

Estimate payback period and 5-year savings when replacing manual or semi-manual pin insertion with the ZEUEE A15-ZY02-02. Formula references industry data from 2,500+ automation deployments.

➔

Launch Tool

Pin Insertion Machine Class Selector

Four inputs return a machine-class recommendation: connector type, monthly production volume, pin geometry complexity, and automation level. Built on the Selection Matrix used by ZEUEE’s application engineering team.

➔

Launch Tool

Pin Insertion Machine RFQ Spec Builder

Structured specification builder that captures what ZEUEE engineering needs to return a working quotation within a week. No back-and-forth.

➔

Launch Tool

High-Performance Blind Mating Connector Machine Solutions

Pin Insertion Machine FAQ — Selection, Compatibility, Installation, Service

What pin diameter and length range does the A15-ZY02-02 handle?

A blind mate connector’s pin profile usually guides our vibration feed and tooling choices — or can be modified to fit yours. Send us a sample and we will spec the feeder bowl and tooling to match.

Does the machine support frequent connector changeovers, or is it dedicated to one connector model?

Designed for mixed product lines. Typically there are between 8 and 12 connector variations running in the field in single devices, sharing a common frame and using fixture kits to swap the connector changeover in less than 20 minutes, once the operator is familiar with the procedure. Position of the pin during insertion stays under servo control, eliminating mechanical re-indexing based on connector pitch.

How does the self-aligning feature compensate for housing misalignment?

A housing incorporates self-aligning features and floating tolerance into the connection so that the socket and pin compensate automatically in terms of mate-plane separation – the socket housing offers 0.5mm to 2.0mm of travel for the pin. For its part, the A15-ZY02-02 adds to this budget by providing precise positioning of each pin at a consistent depth through servo-controlled displacement. Insertion is monitored by a sensor which intercepts anomalies before they get pushed into production. This design is nothing new, the self-aligning blind-mate connection technology was disclosed as long ago as US patent 4,815,986A back in 1989.

Can the A15-ZY02-02 integrate with our existing MES or SCADA system?

Yes, a Mitsubishi PLC is standard which has EthernetIP, ModbusTCP and OPC UA capability and supports the majority of the connectivity used by MES systems today. Scope is customized per application based on the client need – some require logging of production data; others need real-time tracking back to the unit being assembled and may require bi-directional communication. This custom interface specification forms part of the engineering quoted cost.

What annual production volume range fits the A15-ZY02-02 best?

For applications in the 100,000 to 500,000 connector-units-per-year band, the A15-ZY02-02 is the right fit. Connector units per year. Below this, it’s usually more economical to use manual methods or a simple manual insertion tool. Above this range, especially if you have high volume standard connector requirements (such as through hole or press fit on PCBs) then a high speed, fully automated machine similar to a TE P360/P550 would be more appropriate. Use the Selection Matrix in the Spec Sheet.

What is the typical payback period when replacing manual labor with the A15-ZY02-02?

ROI varies directly with local labor rates and the complexity of your product mix. Based on our field deployments the return on investment for specialty semi-automatic machines like this in a mid-volume context is in the region of 1.5 to 3 years, assuming the displacement of 2 to 3 operators per shift. Payback periods drop in countries where labor costs are higher. Use the ROI Calculator on this web page to determine the payback for your specific circumstances.

What does after-sales service look like for installations outside China?

There are three support layers. Remote access through a secure Mitsubishi GX Works3 connection means that many issues can be resolved remotely and the site visit avoided entirely. In addition to the remote support, ZEUEE have an existing network of regional service agents in countries where ZEUEE equipment is already deployed, covering the vast majority of support cases with first level on-site help. Complex non-routine issues require an engineer to be dispatched from ZEUEE, though stock is maintained for common wear parts in several countries and any parts not in local stock will be shipped out of our facility in Taihe.

Do you handle custom orders, or is the A15-ZY02-02 a fixed configuration?

Despite carrying the A15-ZY02-02 base model designation, many configurations exist – every machine is customized and adapted to a specific client requirement. We customize fixture tooling, feeder mechanisms, integrate sensing components and provide the necessary machine-to-MES interfaces. Our standard price is quoted for the baseline mechanical machine, any customized components or integrations are then quoted separately as an added-cost engineering service.
