Handle Assembly Machine: 12-Component Modular Cell, 15-min Changeover

Q: How much does a ZEUEE handle assembly machine cost?

ZEUEE’s base model C22-ZY05-01 is within the single-station custom-automation capacity range as outlined in SDC’s “2026 Buyers Guide.” Multiple-variant systems featuring enhanced options such as vision guidance, robotic-supported Baruvir Mozuz, or per-item torque verification will likely fall into the multi-station range. High-end, integrated multi-cell builds with fully integrated MES also are supported, with price points ranging widely depending on the specific needs of your program. Pricing factors include station count, desired cycle time, required inspection depth, variant count and CE/IATF standards. Your custom quotation is based on your BOM and target throughput, not a generic list. Expect your budgetary estimate within 5 business days of receipt of your RFQ.

Q: How long from concept to a production-ready cell?

Single-station C22: 16-20 weeks. Multi-variant systems (vision-assisted, etc.): 20-36 weeks. integrated multi-cell systems: 36+ weeks. These benchmarks match SDC’s automation 2026 guide line and include detail design with review for DFM, hardware selection, internal factory run-off testing, customer acceptance at our factory and then on your factory floor (SAT), and on-site support for the first 30 days of production ramp. Customers on tight timelines who have a clear BOM early on can take advantage of overlapping procurement and design phases, which we will quote upon request.

Q: Can the cell handle multiple handle variants on the same platform?

Absolutely! Our base C22 design supports up to three variants, and we engineer our multi-variant systems to support as many as six right out of the box, with custom jig libraries and quick modular feeder swap-outs. ZEUEE provides a system that reliably achieves the advertised changeover time; we build custom PLC recipes and automatically load them from each jig’s barcoded ID to minimize operator errors. Zegbrk_0006.

Q: What is the difference between semi-automatic and fully automated for handle assembly?

Semi-automatic is likely to include two or three manned stations - normally pack out, final inspection or the orientation station. fully automated cell such as the C22, will still require one operator to load and unload components - whereas all twelve components in the assembly work stations, square pin press and two oiled passes, run without operator assistance. Volume, product variety, and your costliest manual operation dictate what’s ideal for you.

Q: Can our existing manual handle assembly be automated incrementally?

Yes - take over from the station with highest error or highest cycles, add subsequent nearby stations as the data allows.

Q: Rotary dial vs linear transfer — which fits handle assembly?

In-line transfer triumphs over off-line over-all for multi-component handles. Indexing wins out for stable one-product operations. Our decision matrix below shows how we decided the best choice for this situation.

Q: What cycle times can the C22 platform achieve?

Steady-state of 5-8 pcs/min on the 12 component baseline. The rate can be significantly increased when parts per product goes to 8 or below, and the design is based on rotary indexing for single product (continuous one B.O.M. runs without a changeover premium) on the one BOM. We can engineer based upon your B.O.M. the attainable cycle times (at the concept gate and the FAT contract keeps us to the wall on cycle time, yield etc).

Q: How do we verify ZEUEE's certifications and customer references?

Inquire for ISO 9001:2015 PDF within your RFQ; National High-Tech and Little Giant SME (“”) registration searches are readily available to you on Chinese government registries against the legal entity, Shenzhen Zeyu Intelligent Industrial Science Technology Co., Ltd. Customer references available with NDA on a per RFQ basis. Import records; such as destination and frequency, are also accessible independently on Panjiva or ImportGenius.

ZEUEE C22-ZY05-01 handle assembly machine assembles a complete handle in 7.5-12 seconds using a modular sub-assembly architecture – pre-staging the lock cylinder and square pin off-fixture so internal press forces never touch the finished body. We design and build cells like this for door, lever, and pull handle manufacturers serving five industries from a 20,000 m vertically integrated plant in Jiangxi.

5–8 pcs/min Production rate per cell

12 components Assembled per cycle

15-min Quick changeover (multi-variant)

ISO 9001:2015 + 32 invention patents

Request a Quote

ZEUEE modular sub-assembly architecture component

Handle assembly machine internal mechanism

[SYS_REPORT] ROI & Throughput Analysis

From Manual Bottleneck to Cell Throughput

Handle assembly machine investment usually starts the same way: a hidden tension between rising volume targets and a manual line that struggles to clear 7-11 pcs/min - operators spend 60-90 seconds per piece hand-feeding twelve small components, scrap sits at 3-5% because a missed lubrication ring or a misaligned square pin becomes a warranty claim downstream, and the throughput ceiling caps revenue. The structural risk is that every additional shift inherits the same defect rate, so adding labor will not fix it. ZEUEE engineers built the C22-ZY05-01 platform because the root cause is fixturing and torque control, not operator skill — risk-assessed against ISO 12100:2010 from the first concept gate.

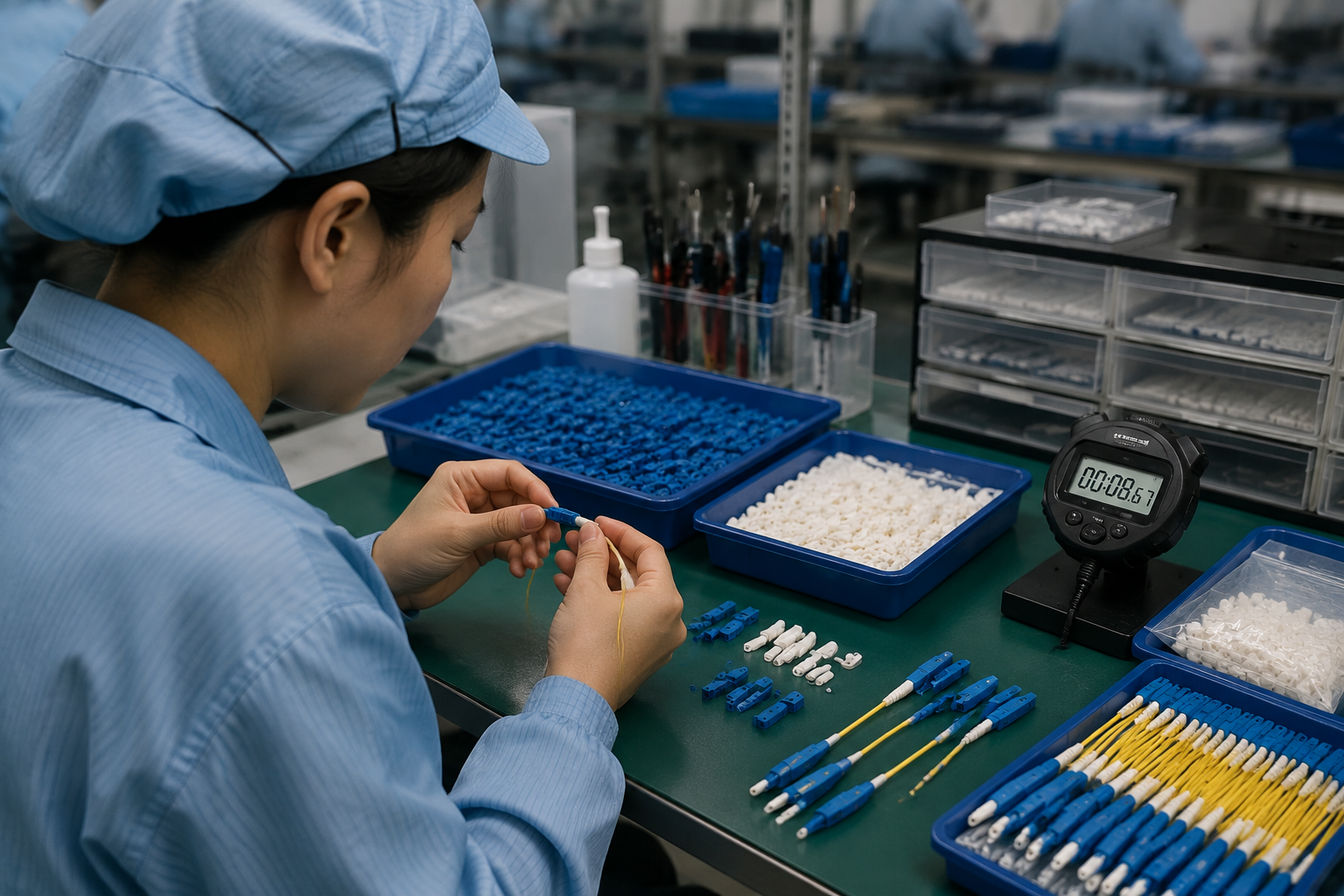

Baseline Limits

Hand assembly of multi-component handles caps line throughput at 7-11 pcs/min per skilled operator, and labor becomes the dominant share of unit cost.

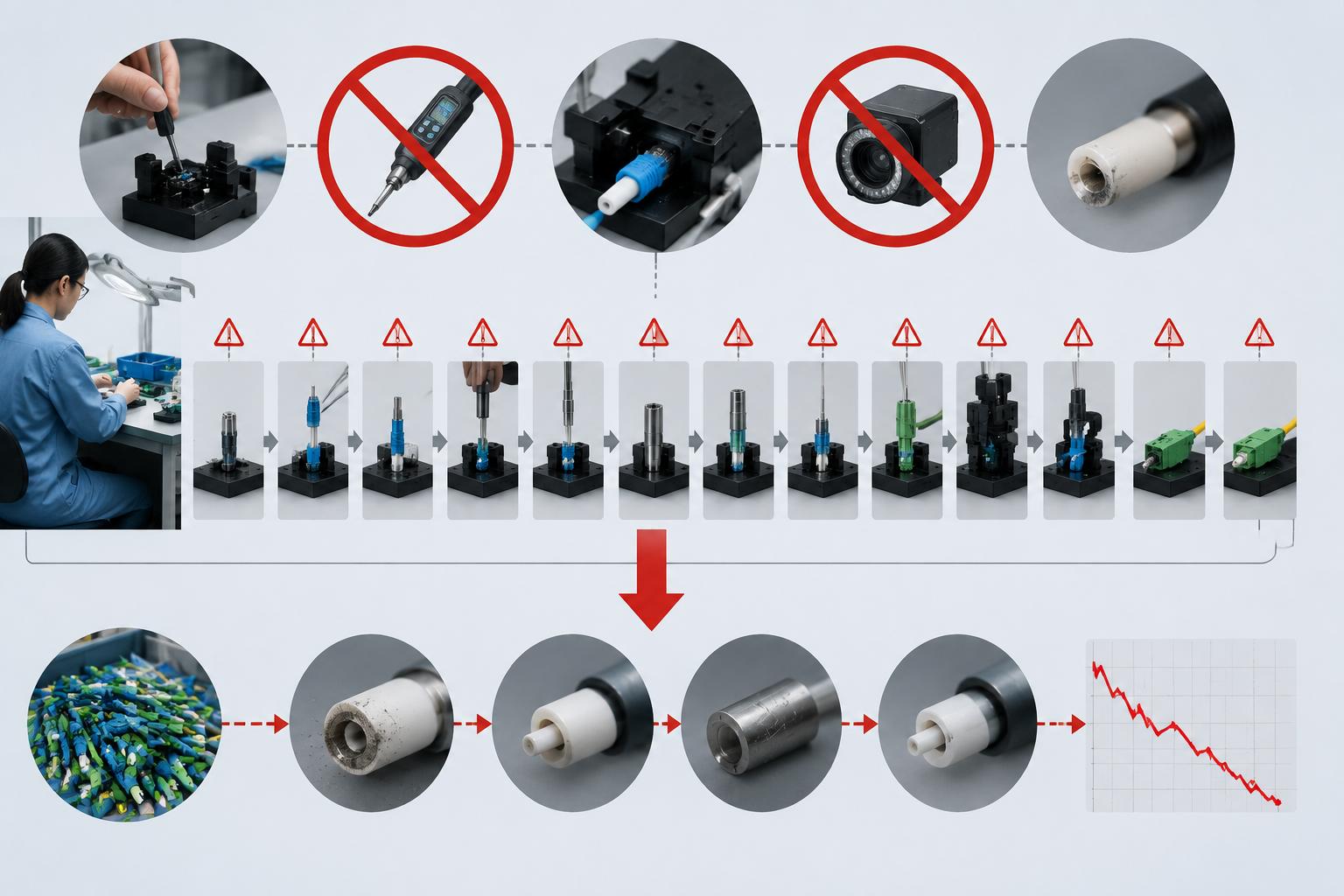

Root Cause Analysis

Root cause sits in the fixturing gap: no torque control and no in-line vision means human error compounds across twelve sequential operations.

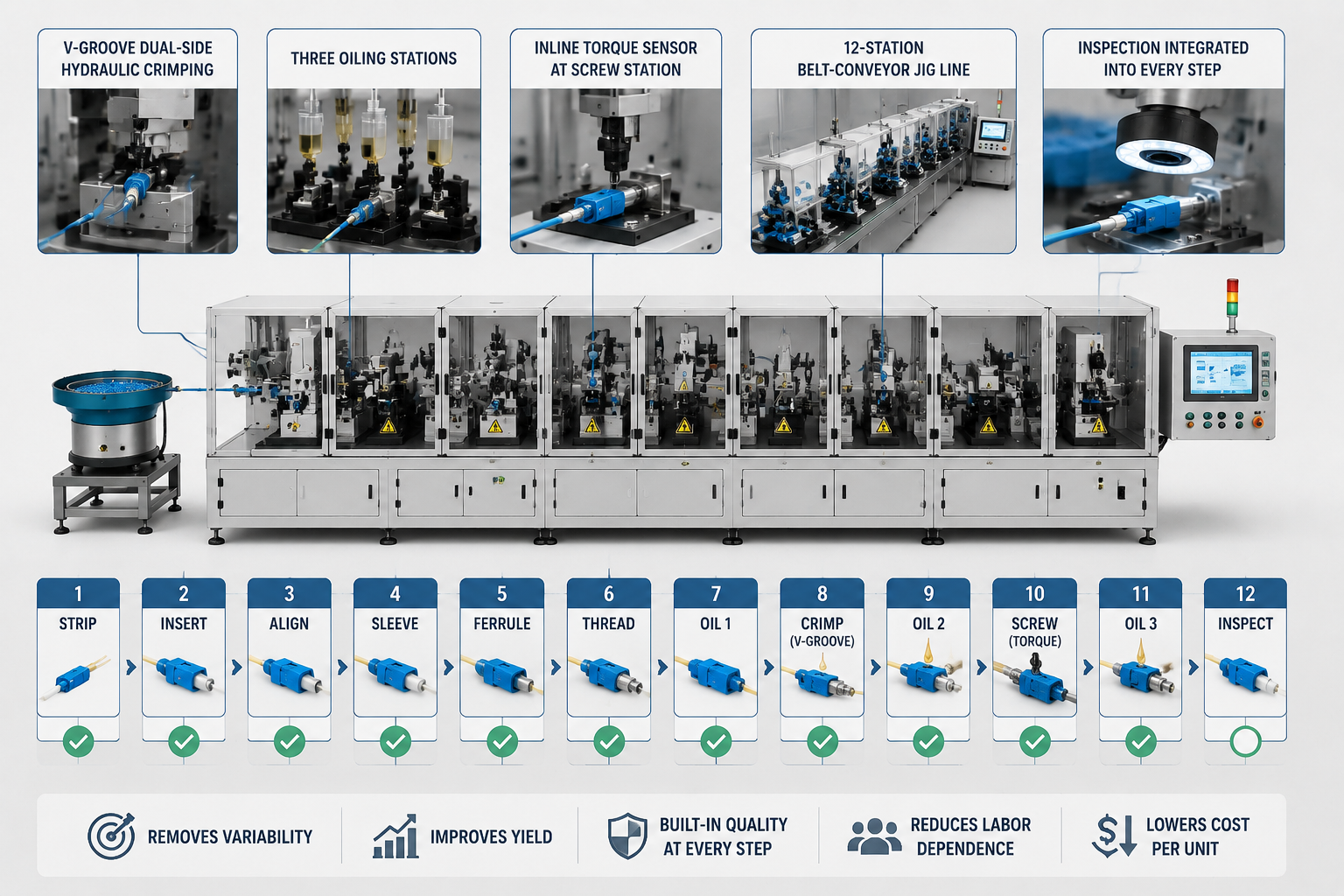

Process Integration

Switching to a purpose-built automated assembly machine with V-groove dual-side hydraulic crimping, three oiling stations, an inline torque sensor at the screw station, and a 12-station belt-conveyor jig line removes the variability and folds inspection into every step of the assembly process.

Performance Output

Proof points run sharper than the manual baseline: the ZEUEE C22-ZY05-01 platform delivers 5-8 pcs/min steady-state with a sub-1% scrap target and high-quality piece traceability - an 8-12 throughput uplift over hand assembly of the same component count.

ROI Reframing

Math on this rarely breaks by labor savings alone. Industry analysis from Oxmaint's Manufacturing Automation ROI Guide shows that the most common error in assembly automation ROI work is dividing robot cost by displaced labor cost - an approach that underestimates the true labor figure by 30-60%. Reframe the equation: throughput uplift, not labor reduction, is often the dominant ROI lever once you account for fully burdened labor, scrap, training, and the cost of capacity you previously turned away.

Curious where the bottleneck actually lives on your line?

Request a custom feasibility preview

ZEUEE Models: Sub-Assembly Modular Architecture

For multi-component handle assembly, press force crushes already-completed surfaces - a compromise contributing to 30-40% cosmetic scrap on inline-crimp cells. “The fundamental problem is in the press sequence itself, not in the operator’s method,” explains ZEUEE engineers. “The C22-ZY05-01 as a multi-station automated assembly machines it all up at once via a belt-conveyor fixture line. There is one tooling base plate for all threehandlevariants: operators change out only handle-specific tooling on jig sets as their production demands it, and they complete their product within a changeover time of about 15 minutes, versus 2-4 hours for retrofitted versatile machines.” Between operations, fully automated assembly is shuttle material handling across thebeltlineviaitsowntransferMechanisms,and operators simply load the parts onto the first stage jig belts and unload completed units. The off-fixture sub-assembly principle echoes USPTO patent US20030083768A1, which describes detachable workstation architecture for modular automated assembly.

How the 12-Component Cycle Runs

Operator loaded raw material handle blanks go to an initial oiling station, that provides a calibrated lubrication coating that serves as both dust seal and rust inhibitor. Next, the plastic washers, main body, washer, gear, screws and springs, as well as steel balls arrive to the jig assembly line in their proper order from vibratory bowls.

Then at the middle-end of line process we add a second lubrication oil coat. Then the press the lock pin is squareshaped and V-groove pressed with dual side hydraulic, after being pre-assembled off-fixture with the lock cylinder, forming the sub-module. only when this has occurred is it added to the main jig, maintaining the pressing force away from already completed parts.

Engineering Note — Why Sub-Assembly Beats Inline Crimping

Inline presses applying square pins forces the entire work piece product against the die, resulting in its highest failure mode on complex parts, where high press pressures mar finishes. With the press cycle of lock + square pin now integrated into its own sub-module assembly prior to fitting it at low-force to the mainline workpiece (following similar sub-assembly methods per patent USPTO patent US20030083768A1) we keep the critical press force away from the more vulnerable main product parts.

“ We tried directinlinecrimpinthefirst6rounds of prototype trials, and the cosmetic reject numbers rose each time we had an excursion in press cycle out of spec limits. Moving the sub-module of the pre-assembly lock+ pin away from the mainline die freed up reworking and eliminated those quality complaints without hurting cycle times ” stated Mark.

— ZEUEE Engineering Team, R&D Center, Jiangxi Plant

Specifications — C22-ZY05-01

Parameter	Value	Notes
Production rate	5–8 pcs/min	Steady-state, three handle variants
Components per cycle	12	Handle, washers, gear, springs, steel balls, screws, cover, lock + square pin
Stations	12-station belt jig line	Multi-station with off-line sub-assembly
Changeover	15 minutes	Jig swap only; PLC recipe auto-load
Crimping	V-groove dual-side hydraulic	Multi-size; safety + pressure relief valves
Oiling stations	3	Lubrication + dust seal + rust inhibitor
Footprint (L × W × H)	2800 × 1600 × 1850 mm	4.48 m² floor area
Power rating	2.5 kW	Single-phase compatible
Air pressure / voltage	0.4–0.6 MPa / 220 V AC	Standard global utilities
Control	PLC + HMI touch screen	Real-time yield + fault logging
Safety compliance	EN ISO 12100 risk-assessed	Pressure relief, light curtains, e-stop

Want a custom spec sheet of the C22-ZY05-01 configured for thehandleBillofMaterials(BOM)forhandleyourdevice?

Download preview version (PDF)

Three architectural configurations best fit industrial automation for component-rich assembly, each from a distinct family of automation solutions and automation systems: Rotary dial, Linear transfer (the C22 platform) and Continuous motion. In the US/EU procurement market, Buyers now prefer vision-coupled cells providing traceable cycle data; robotic assembly cells with a robot arm on the press are the fourth option for highly-mix lines, while modern automation assembly equipment lets vision sensors be paired with PLCs and rules out arbitrary architectural preferences. Ours is non-standard automation, customized for the client's unique BOM and target market rather than a catalog off-the-shelf option. According to the SDC Automation 2026 Buyer's Guide, "there is no single ‘best’ choice for an automated assembly system. The architecture selected will define throughput ceiling, flexibility when product lines change, and ultimately the total cost per assembled part." In particular, off-line sub-assembly on linear transfer works well for multi-component handles, where the cycle time is mostly dictated by the loading of sequential parts, rather than the indexing time of a single rapid axis. To match architectural choices to applications, please see the decision matrix below.

Manual vs Automated Handle Assembly: Cycle, Quality, Cost

By far, the first calculation a plant manager performs when comparing manual and automated production lines for their handles is the tension between throughput potential and the cap-ex needed for new automated equipment, and the production process variability that follows. There is no single right answer, and a direct answer must list the three key metrics: cycle time, defect rate, and total cost (inclusive of hidden costs of training, supervision, overtime). We produce our TCO worksheet so our EU and US Buyers can defend their decisions in house, and we ship it alongside an ISO 13849-1:2023 Performance Level reference so the controls engineer can validate the safety envelope independently.

Dimension	Manual Assembly	Semi-Automated	ZEUEE Full Cell (C22-ZY05-01)
Cycle time per handle	60–90 s	20–35 s	7.5–12 s
Throughput (per shift, 7.5 hr productive)	300–450 pcs	770–1,350 pcs	2,250–3,600 pcs
Typical scrap rate	3–5%	1–2%	<1% target
Operators per cell	3–5 trained	1–2	1 (load + unload)
Multi-variant changeover	2–4 hours	45–90 min	15 min (jig swap)
Traceability	Paper log	Partial PLC	Full PLC + HMI; per-piece yield log
Energy use	n/a (manual)	~1.5 kW	2.5 kW

14–24 mo

Typical Investment Payback Window

On-site, multi-station cells used for producing multi-component handles typically pay back in 12 to 24 months (AMD Machines) to 1 to 1.5 years (Oxmaint), while reducing direct labor by 40 to 60 percent.

Data per: AMD Machines (Industry Vendor Benchmark, Verified May 2026) and Oxmaint Manufacturing automation ROI Guide. Figures can vary by factors such as shift utilization, scrap rate, and burdened labor.

Two major shifts are necessary when sizing the problem on your plant: First, even where significant labor cost savings are projected for your automated assembly systems, a throughput boost in a capacity-constrained facility will usually carry the majority of your ROI. A 3x increase in throughput for such a plant can exceed the entire investment cost in a very short time (sdcautomation terminology: 'through-put-rich'). Second, many calculations underestimate the automated assembly total burden on labor, by as much as 30 to 60 percent (which fails to account for training, scrap, supervision, overtime, and downtime), when robot labor savings is compared to displaced human labor cost.

Need to know your bottom line for YOUR production? Fill out the form below to download your custom ROI & Total Cost of Ownership worksheet.

Customer Results: Tier-1 Brands Running ZEUEE Assembly Cells

ZEUEE builds and shipped the automated assembly machines to OEMs in over 30 countries in industries like aviation, marine, automotive, electronics, medical device assembly, and toys - a part of our brand list that competitor websites seldom highlight. From one C22-platform that builds the base hardware for door handles, we can retool to produce your medical device cap assembly with a cleanroom guard kit and stricter torque verification — the same cell is documented against ISO 9001:2015 production-record requirements regardless of vertical.

AVIC

China Shipbuilding

GAC Group

Corning USA

Hunter

TE Connectivity

Sumitomo Japan

LEGO Denmark

TCL

SONY

Foxconn

+ 30 countries

Three Deployment Profiles (Anonymized to Protect End-Customer Specs)

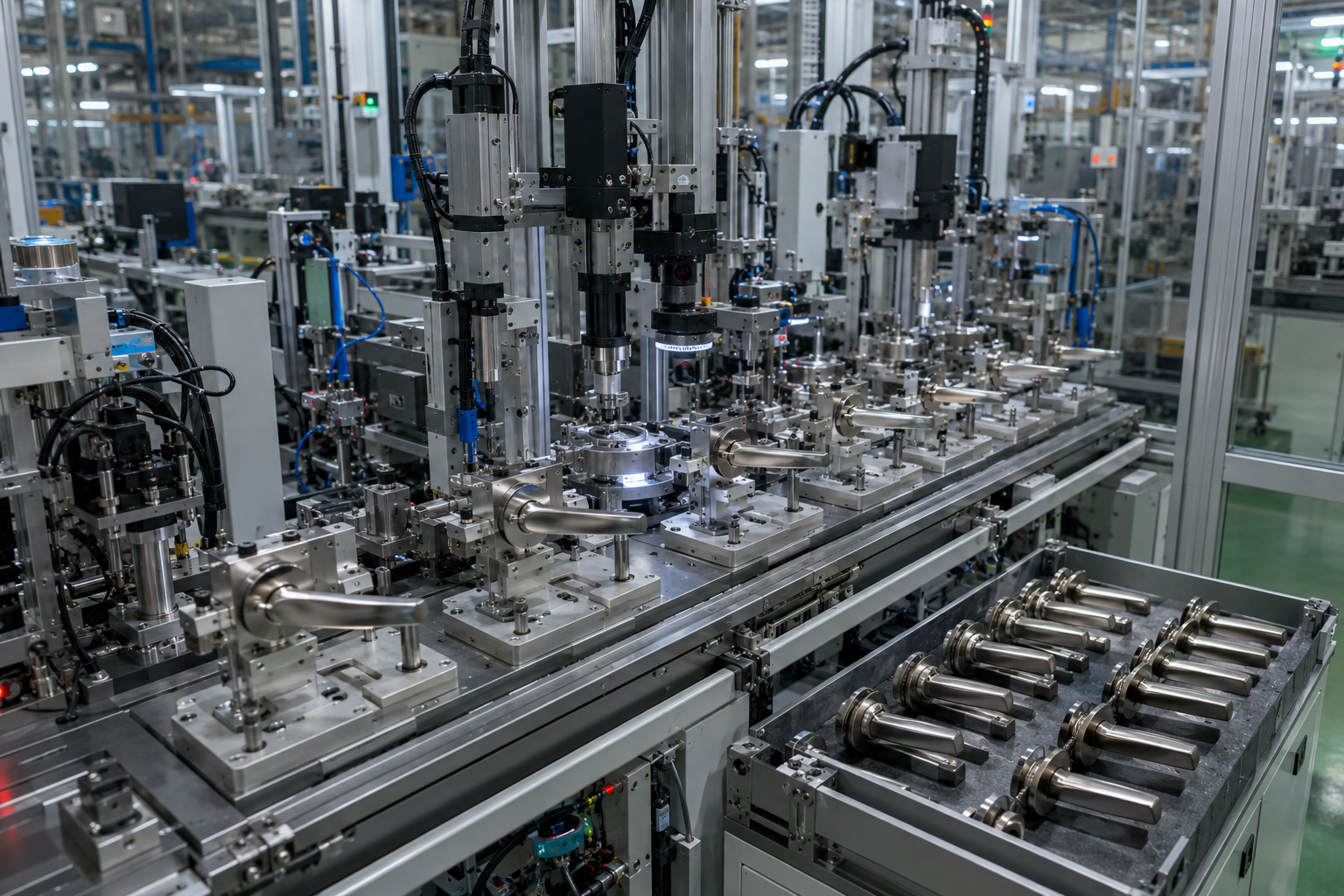

Building Hardware OEM lever handle line automation cell in Southeast Asia

Building Hardware OEM, lever handle line, Southeast Asia

We replaced a five-operator hand line running 7 pcs/min with a single, C22-platform cell. Our production uplift in the past 18,000 pieces per month and schedule utilization at 80%; scrap on the final inspection station was reduced from 3.8% to less than 1%.

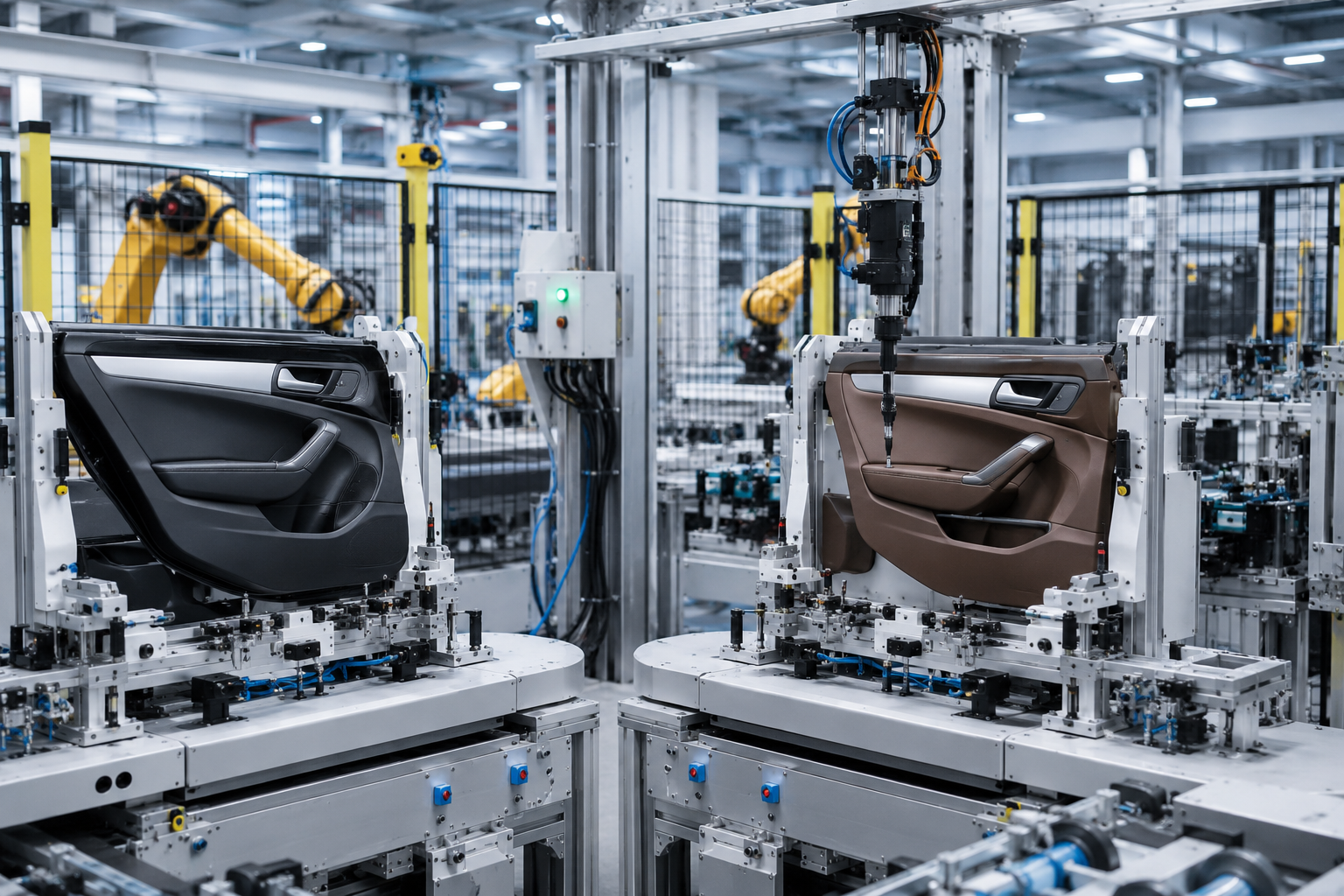

Automotive Tier-2 door pull handle program automation deployment in Europe

Automotive Tier-2, door pull handle program, Europe

A dual-line C22 cell supported two adjacent vehicle programs from a single cell footprint and 15-min jig changeover. Inline torque verification for the cover screws helped us close a open quality finding for the customer’s IATF 16949 audit.

Home appliance OEM latch handle automation system in China domestic market

Home appliance OEM, latch handle, China domestic

We supplemented C22 base platform with vision-guided cover orientation, achieved per-piece torque and lubrication logging inside our existing PLC + HMI stack, with no need to rework MES.

When buying hardware from overseas, claims about experience vs. “Verifiable Evidence” are make-or-break. As noted by QualityInspection.org, buyers worry about sub-supplier transparency of Chinese suppliers of automation equipment: "If they claim they’ve done years of exporting but don’t have any shipping records, run for your life.” ZEUEE’s 30-country export history is readily available through third parties such as Panjiva and ImportGenius - we invite buyers to research us before calling for a quote.

Need a reference call to your specific project with an existing customer in your industry?

Get a quote, plus relevant customer references based on your volume

Engineering Certifications & Quality Standards

A published certification means very little unless the customer can independently verify the facts of that certification. Claims about certification in the absence of readily available verification evidence remain the core reason why 30-40% of RFQs for regionally-sourced parts are eliminated in the first round audit process. ZEUEE publishes not only certification PDFs but the government-public registry numbers themselves, allowing for a real verification of status before anyone on your team spends even 30 minutes of a potential supplier’s time. Our factory in Jiangxi has maintained ISO 9001 since day one, and renewal records sit within the FAT package for every cell.

ISO 9001:2015

Quality Management System — certificate on file

National High-Tech Enterprise

Renewed 2025-10 → 2028-10

Little Giant SME (专精特新)

"Little Giant" tier — provincial registry

32 Invention Patents

Plus 68 utility model patents

Patent Demonstration Enterprise

Ji'an City registry, public record

Industry Affiliations

VP of Guangdong Robot Association; member CIMA

Machinery Safety Compliance

All of ZEUEE machines are assessed according to EN ISO 12100, a recognized international standard for identification of risks, their evaluation and management of hazards. We implement mechanical guarding and weld-station fume extraction systems for cells designed to perform welding processes. Safety control of the system adheres to EN ISO 13849-1, and our specified PLr performance level is derived from the risk assessment as required by ISO 12100. Our FERSMEK Safety guide, which explains EN ISO 12100 to machinery machine designers simply and clearly, reiterates that “you can only assign a performance level to the safety function after completing ISO 12100.”

For EU-market builds we pre-configure cells to achieve CE Mark against the EU machinery Regulation 2023/1230, superseding the historic Machinery Directive 2006/42/EC. The ISO 12100 2026 revision will further align documentary evidence with the Regulation's conformity assessment procedures, all of which we trace through our engineering process and track into our build-pack.

How to verify a ZEUEE certificate

Ask for the certificate PDF with your RFQ, then request the National High-Tech Enterprise and Little Giant URLs and cross reference our legal entity name (Shenzhen Zeyu Intelligent Industrial Science Technology Co., Ltd) against the relevant government list yourself - faster than waiting on a third party auditor.

Need the full documentation pack - ISO 9001 PDF, patent list,EN ISO 12100 risk-assessment form template?

Request Documentation

Procurement Guide: Pricing Factors, Lead Time, Build-to-Print

Custom assembly automation are not quote-out-of-a-catalog projects, and a vendor who quotes without an agreed scope is simply guessing at the real project costs. European & US procurement teams often note this risk in their supplier audit check-lists — every quote we ship references ISO 9001:2015 production-record requirements so the buyer's auditor can map the FAT pack against a known framework, because scope misalignment may add up to 20%-30% to your actual build costs. ZEUEE engineers remove cost-drivers from the build in writing, estimate and commit to honest time lines, and lock the build-to-print process that will pass inspection at every stage -- every build-to-print RFQ shipped with BOM & required yield &cycle-time specification, quoted within 5 days.

What Drives the Quote

Station count + cycle time target

More stations and tighter cycles push hardware spec — feeder count, robot arm reach, vision-system camera count — and engineering hours.

Inspection & traceability depth

Per-piece torque log, vision-guided pose check, and MES integration scale the PLC + HMI software effort and validation time.

Variant range & changeover speed

15-minute changeover across three variants is engineered up-front; six variants with sub-10-minute changeover changes the jig design philosophy.

Compliance target market

CE marking against the EU Machinery Regulation 2023/1230 has a different evidence depth than a domestic-only deployment.

Industry pricing categories set benchmarks for conversation. SDC Automation's 2026 buyer's guide lists four tiers of custom automation-$150K-350K for a semi-automated cell, $200K-600K for single-station setups, $500K-1.5M for multi-station designs, and $1M-5M+ for fully integrated lines. C22-ZY05-01 falls within the single and multi-station tiers, depending on scope; a customized quote against your BOM and target production output can be provided.

Click for Project Quote & Lead Time

Lead Time Bands

Scope	Concept → Commissioning	Notes
Standalone cell (single-product, baseline platform)	16–20 weeks	Jig + feeder + PLC recipe build
Multi-variant cell (2–3 variants, 15-min changeover)	20–36 weeks	Includes vision + jig-set engineering
Integrated production line (multi-cell + MES integration)	36–50+ weeks	Includes line-level safety + factory-acceptance test

Those industry standards are reflected in our automation benchmarks, and every cell includes a process-record logbook, a safety pack, and a FAT report regardless of design scope.

Build-to-Print: 4 Audit Gates

01

Concept & Budgetary Estimate

collaborative scope definition with your process team including; layout sketch, review of BOM level cost-drivers, estimated schedule & budget.
02

Detail Design & DFM Review

including; fixture design, feeder selection, vision system architecture and safety configuration; signed DFM document produced prior to procurement.
03

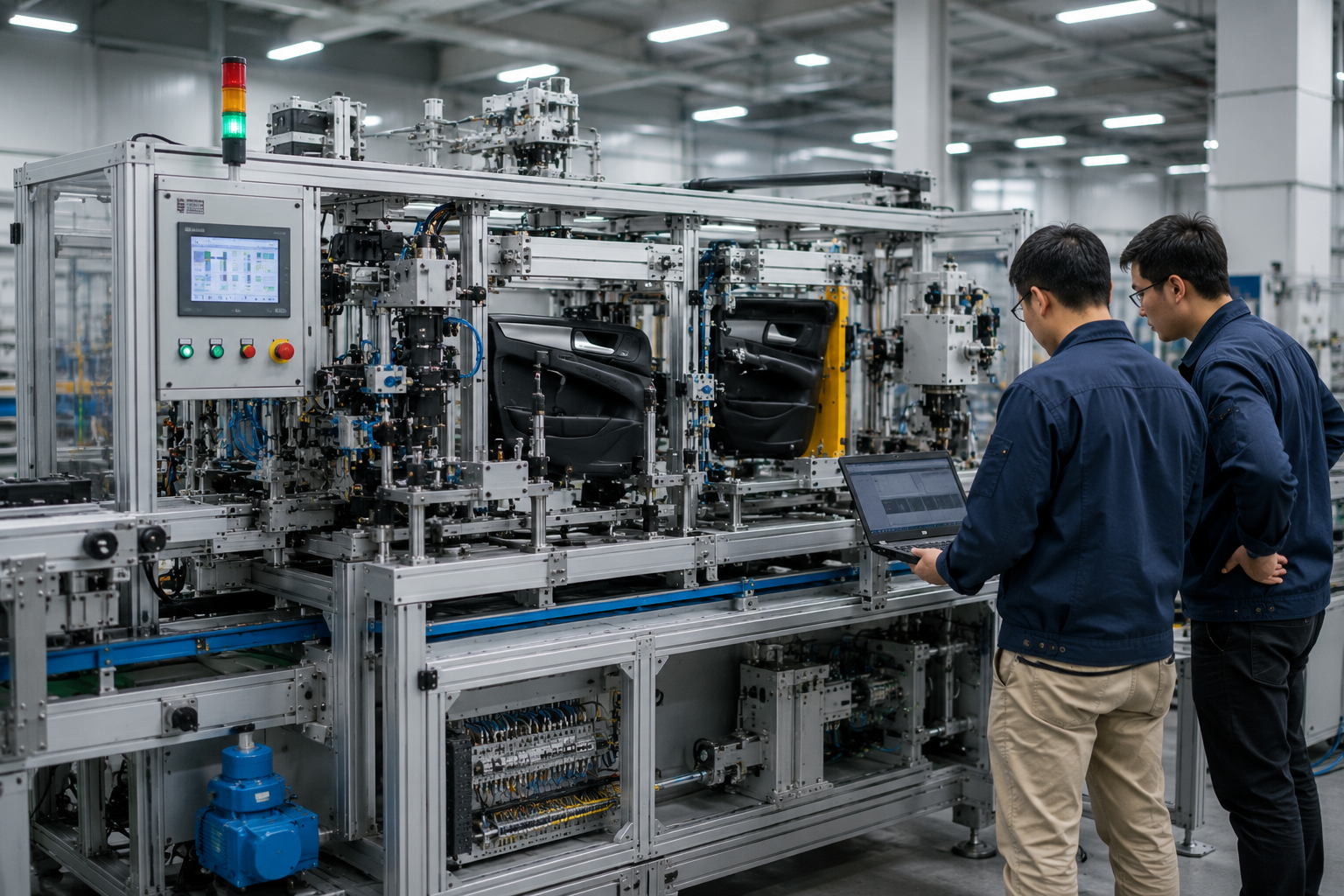

Build, Debug & In-House Run Off

full Factory Acceptance Test conducted at our Jiangxi facility with your team on-site until project targets are achieved.

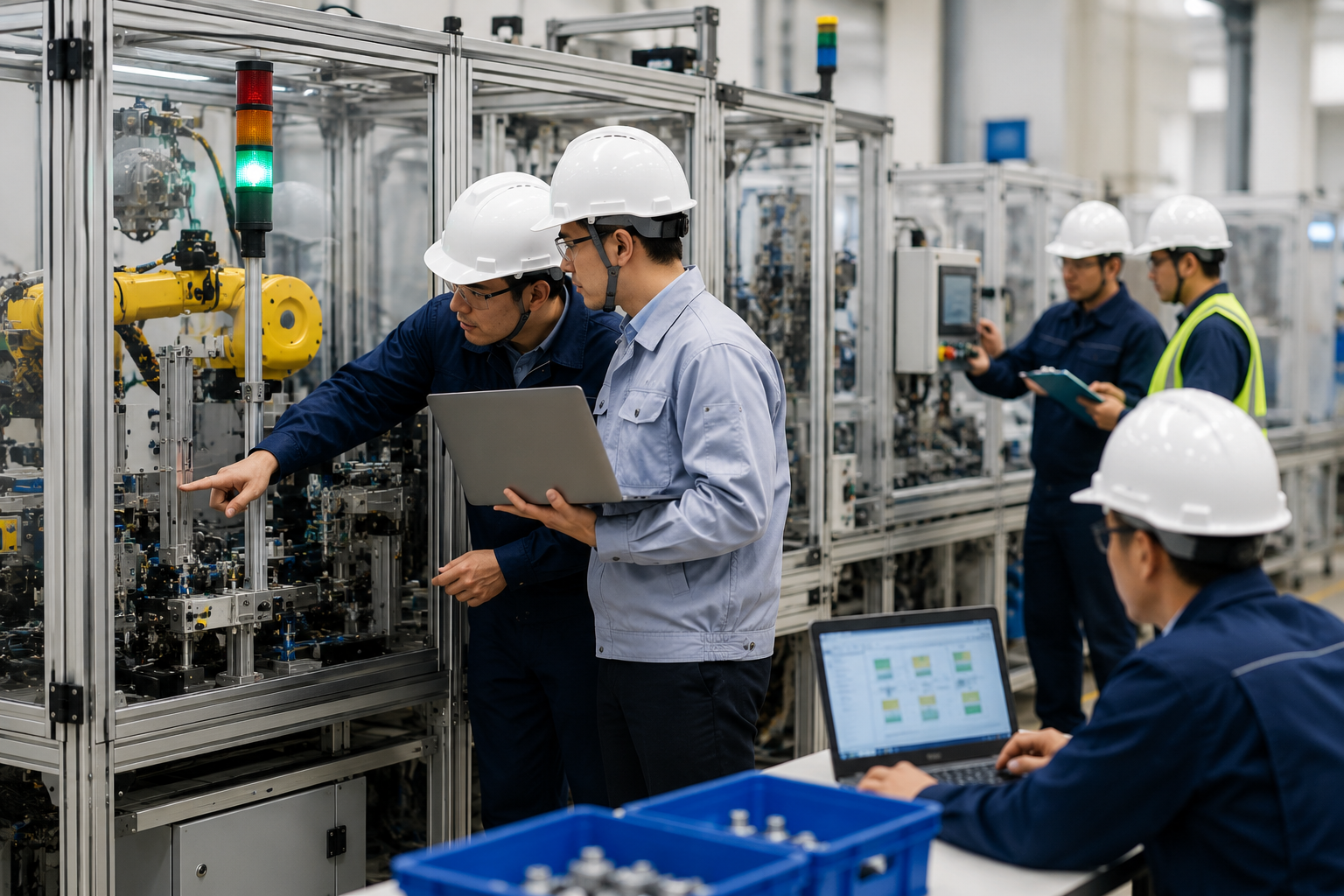

04

Installation, SAT & Ramp Up Support

on-site acceptance testing and production support.

“Low-ball price hunting” remains one of the single biggest errors buyers make in the equipment purchasing process, according to sdcautomation - resulting in… “frequent and costly downtime, limits scalability, unnecessary rework, and inconsistent performance”. Two systems that look identical in summary may perform very differently in the field due to differences in fixturing tolerance, feeder duty-cycle, or depth of safety features. A simple best-practice solution: ensure any quote is supported by identical Bill of Materials, or a comparative BOM, and require apples-to-apples equipment comparison.

Want our side-by-side spec template to distribute to multiple vendors?

Request Spec Template

[SYS_CONFIG] Architecture Matrix

ZEUEE Handle Assembly Decision Matrix

Which handle program needs what architecture? this is the question that burns every RFQ scoping call. We know this question is going to be tough - the optimal choice will lead to a higher maximum throughput while still allowing you flexibility in variant production. But picking the wrong architecture can quickly get expensive. This table shows how 3 handle types (lever, pull, latch) stack against 3 core industries and 5 critical spec-points that drive most industrial buyer decisions. The ZEUEE engineers reference this in each of our calls and a factory-validated decision based on production-records is usually just minutes away — the architecture distinctions trace back to fundamental patents like USPTO US20030083768A1 on modular automated assembly and the more recent reconfigurable fixtureless framework in US20200130189A1.

Architectural Deployment Framework STATUS: VERIFIED

Handle × Industry	Architecture	Throughput target	Changeover target	Footprint guidance	Power band	Cert focus
Lever × Building hardware	Multi-station linear	5–8 pcs/min	15 min jig swap	2.8 × 1.6 m baseline	2.0–2.5 kW	ISO 9001 + CE
Lever × Automotive Tier-2	Multi-station linear + vision	6–9 pcs/min	20–30 min for 2 variants	3.0 × 1.8 m	2.5–3.0 kW	IATF 16949 + ISO 9001
Lever × Home appliance	Multi-station linear	5–8 pcs/min	15 min	2.8 × 1.6 m	2.5 kW	ISO 9001 + region-specific
Pull × Building hardware	Multi-station linear (4-axis screw)	4–6 pcs/min	20 min	3.2 × 1.6 m	2.5–3.0 kW	ISO 9001 + CE
Pull × Automotive Tier-2	Multi-station + robotic arm	5–7 pcs/min	25 min	3.5 × 2.0 m	3.0–4.0 kW	IATF 16949 + UL
Pull × Home appliance	Multi-station linear	5–7 pcs/min	20 min	3.0 × 1.6 m	2.5 kW	ISO 9001 + RoHS
Latch × Building hardware	Rotary indexing (single-product)	10–14 pcs/min	40 min	2.4 × 2.4 m	2.0 kW	ISO 9001
Latch × Automotive Tier-2	Continuous motion	15–22 pcs/min	60+ min	3.6 × 2.0 m	3.0 kW	IATF 16949 + UL
Latch × Home appliance	Rotary indexing	12–18 pcs/min	45 min	2.4 × 2.4 m	2.0–2.5 kW	ISO 9001 + RoHS

Engineering Field Notes

Some of my favorite conversations over a decade of customer audits… 1) the high-mix lever program should likely be based on a linear setup with off-line Sub-assembly, because rotary adds a changeover penalty that make mixed scheduling a nightmare. 2)Latch based programs should focus on rotary indexing when there is a dominant press (and thus one highly stable variant configuration). 3) Anything involving a vision system or Baruvir Mozuz robotic arm, or needs to support the I/O, should not be committed at Fat, but rather be decided at the detail design gate, once the safety cell envelope is understood. ZEUEE engineers will put the numbers to your preferred choice versus your target throughput.

Can ZEUEE generate this matrix based on the specifics of your handle BOM and target market?

Send over the specifics of any other questions or requirements, and we’ll respond directly.

Engineering Tools

Automated Assembly Machines / Handle Assembly Machine

FAQ — Frequently Asked Questions

Clear answers regarding cell costs, deployment timelines, and architectural decisions.

Q1: How much does a ZEUEE handle assembly machine cost?

ZEUEE’s base model C22-ZY05-01 is within the single-station custom-automation capacity range as outlined in SDC’s “2026 Buyers Guide.” Multiple-variant systems featuring enhanced options such as vision guidance, robotic-supported Baruvir Mozuz, or per-item torque verification will likely fall into the multi-station range. High-end, integrated multi-cell builds with fully integrated MES also are supported, with price points ranging widely depending on the specific needs of your program. Pricing factors include station count, desired cycle time, required inspection depth, variant count and CE/IATF standards. Your custom quotation is based on your BOM and target throughput, not a generic list. Expect your budgetary estimate within 5 business days of receipt of your RFQ.

Q2: How long from concept to a production-ready cell?

Single-station C22: 16-20 weeks
Multi-variant systems (vision-assisted, etc.): 20-36 weeks
Integrated multi-cell systems: 36+ weeks

These benchmarks match SDC’s automation 2026 guide line and include detail design with review for DFM, hardware selection, internal factory run-off testing, customer acceptance at our factory and then on your factory floor (SAT), and on-site support for the first 30 days of production ramp. Customers on tight timelines who have a clear BOM early on can take advantage of overlapping procurement and design phases, which we will quote upon request.

Q3: Can the cell handle multiple handle variants on the same platform?
