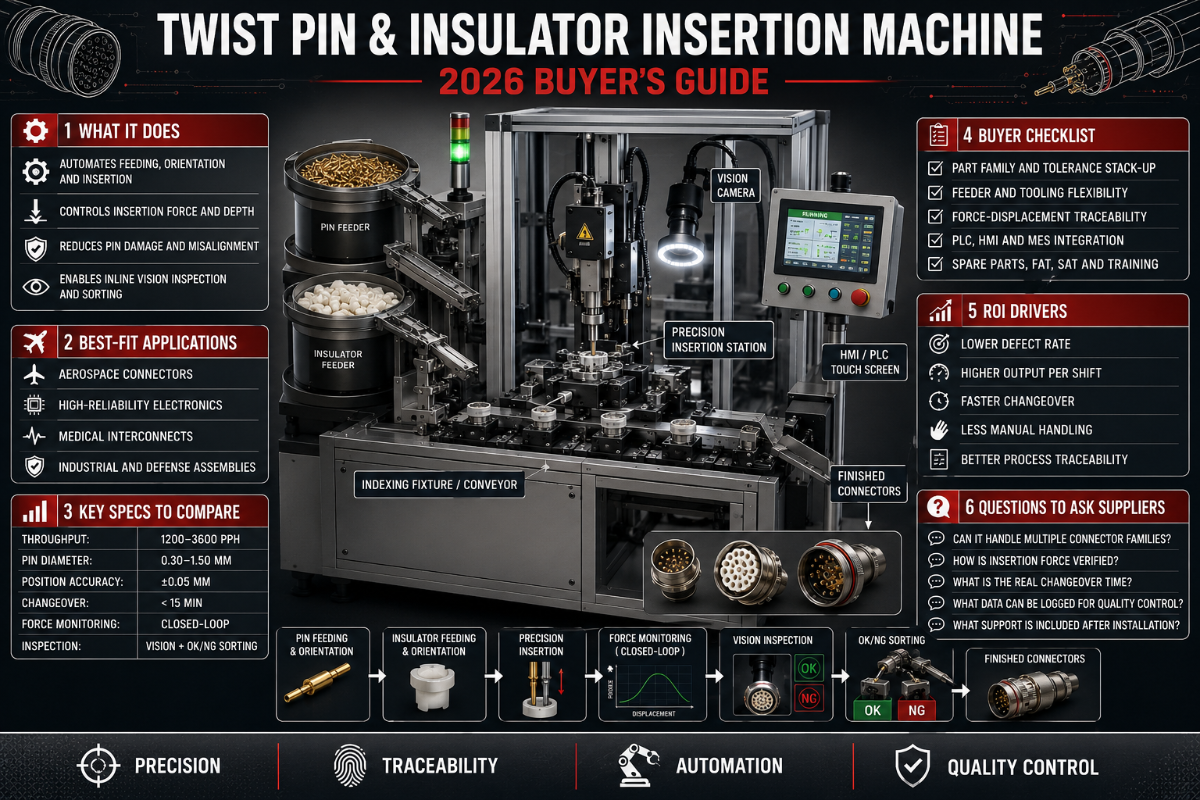

Twist Pin & Insulator Insertion Machine: 2026 Buyer’s Guide

A twist pin & insulator insertion machine automates two of the most error-prone steps in connector assembly: pressing the metal contact (the twist pin) into its cavity, and seating the plastic insulator or housing that locks and isolates it. This guide explains how these machines work, how to choose one, how to keep insertion force in spec, and what to inspect — written for engineers and buyers who already know what the part is and now need to make a decision.

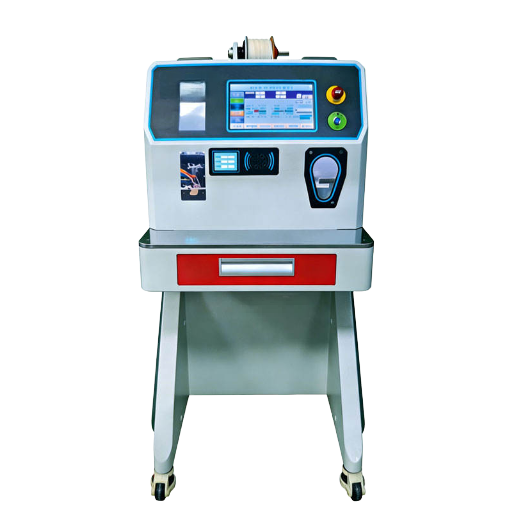

What a Twist Pin & Insulator Insertion Machine Actually Does

In connector manufacturing, a twist pin & insulator insertion machine performs two sequenced jobs on one station. First it inserts the contact — frequently a twist pin or the closely related hyperboloid contact, whose “basket” of fine, helically wound wires grips the mating pin at many points rather than two. Then it seats the insulator: the molded body, seal, or housing that holds the contact, sets pin pitch, and isolates each circuit. Getting both right, at rate, is what separates a production line from a bench operation.

First, a disambiguation that trips up search results. The “twist pin” here is an electrical contact, not the upholstery twist pins sold for slip covers. In connectors, that part is a precision component. Twist-pin and hyperboloid contacts are related but not identical — both use a wound-wire basket, and the exact term varies by maker — yet they share the same advantage: a hyperboloid contact is commonly rated on the order of 100,000 mating cycles, far beyond the few-thousand-cycle rating typical of many stamped contacts, because the wire basket distributes wear over many contact lines rather than two, as connector industry coverage of hyperboloid technology documents.

So why automate? Because both steps are unforgiving. Seat a contact 0.2 mm shallow and it can pass a visual check yet still fail in the field; an insulator pressed off-axis cracks or traps a bent pin. By contrast, a machine repeats the same force and depth thousands of times per hour, logs each one, and rejects the outliers — which is exactly what manual insertion can’t promise. For the buy-side view of a specific build, ZEUEE’s twist pin & insulator insertion machine solution page lists the configured options; this guide stays on the engineering and selection side.

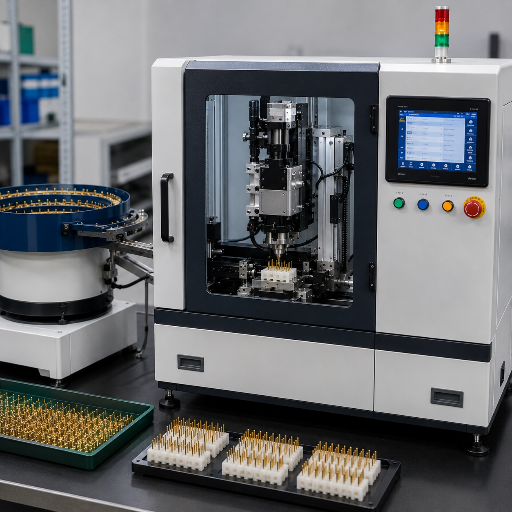

Inside the Machine: Core Subsystems and How Insertion Works

Strip away the branding and almost every connector assembly machine in this class shares four subsystems. Understanding them tells you where quality is won or lost.

• ✔Feeder. A vibratory bowl or a reel presents pins in a known orientation. Most jams trace back here — uneven reel winding, tangled pins, or burred tips disrupt feeding before the head ever moves.
• ✔Insertion head. A servo or pneumatic actuator drives the pin to depth. Servo heads let you program a velocity and depth profile; pneumatic heads are simpler and cheaper but blunter.
• ✔Force-monitoring. Inside it, a load cell records force against displacement for every stroke. That curve’s shape — not just the peak — is the quality signal.
• ✔Fixturing / nest. A tooled nest holds the housing square to the head. Poor fixturing is the hidden cause of off-axis insulator damage.

Each cycle itself is short: the feeder presents a pin, the head picks and aligns it, the actuator drives it through the insulator into its cavity while the load cell watches force build, and a verification step confirms seat depth before the nest indexes to the next position. Patented insertion methods such as US Patent 11,424,562 (press-fit insertion method) formalize how the drive stroke and verification are sequenced for repeatable results.

What are the biggest challenges with automated and semi-automated pin insertion machines?

In practice, the recurring problems are upstream of the press. Variation in pin length or pitch, abrupt tip transitions and burrs, uneven reel winding, and sharp cut-offs all cause feed faults and can scrape plating off the mating contact during insertion. None of these are “machine” faults exactly — they are pin-quality and tooling faults that the machine exposes. The practical fix is to qualify your pin supplier and tooling to the same standard you hold the machine to, because a high-speed head simply inserts a bad pin faster.

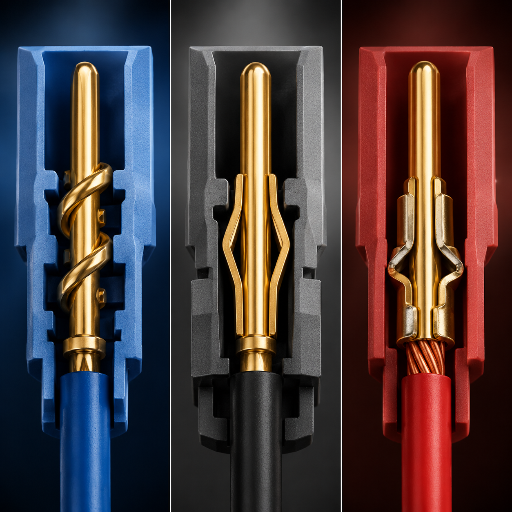

Twist Pin vs Press-Fit vs Crimp: A Contact-Retention Showdown

“Insertion machine” covers several retention methods that behave very differently. Choosing the wrong one is a design-level mistake no amount of machine precision fixes. The table below compares the methods you will actually weigh.

Those press-fit rows matter for one reason: a compliant press-fit pin makes a gas-tight, solderless connection when the pin’s press-fit zone is sized larger than the plated through-hole (commonly around a 0.60 ± 0.05 mm finished hole). That is why automotive and backplane builders favor it — compliant press-fit pins from established manufacturers such as TE Connectivity are engineered around exactly this fit — and why the insertion machine has to control force precisely, since the pin is deliberately deforming on the way in. Connector geometries built for this — such as the penetration-aperture design in US Patent 8,628,361 — exist specifically to make that controlled deformation repeatable.

The 4-Lever Insertion-Force Playbook

Insertion force is the number that decides whether a connection is sound. Too little and the contact sits shallow; too much and you buckle the pin or crack the insulator. Four levers control it, and an experienced line tunes all four rather than chasing one.

Can stainless steel twist pins be inserted?

Yes, but stainless is prone to galling — practitioners on engineering forums describe a 0.125-inch stainless pin that peeled material on the way in and ended up loose, a classic gall-then-slip-fit failure. Fixes are a generous lead-in chamfer, a slower press profile, and the right plating or lubricant; when in doubt, run a force-monitored sample batch before committing the line.

Insulator-Insertion Defect Dictionary: 9 Failure Modes

Most insertion defects fall into nine recognizable modes. This dictionary maps each defect type to its root cause, the force or visual signature that reveals it, and how an instrumented machine catches it in-line.

Caught in-line, a defect costs a cycle; caught at the customer, the same defect costs a recall. When a contact does slip through, documented rework methods exist — press-fit connector designs with a penetration aperture are one example of geometry built for recoverability. What the dictionary shows is that every mode here has a force or vision signature, so a monitored machine can sort it before it ships.

Picture a tier-2 automotive supplier running ECU connectors on an older semi-automatic press with no force logging. A batch of contacts seats about 0.15 mm shallow — invisible to the operator, invisible to a quick visual check. The parts pass, ship, and surface three months later as intermittent no-starts in the field. The eventual root-cause review blames a worn nest that let the housing sit proud. A force-monitored machine would have flagged the truncated curve on the first part, not the ten-thousandth. The sorting, travel, and warranty bill ran well past the price gap between the two machine tiers — which is the real argument for buying the monitored option.

How to Choose a Twist Pin & Insulator Insertion Machine

Here is the contrarian truth the brochures skip: automation is not always the right answer. According to the iNEMI Press-Fit Technology Roadmap, press-fit insertion today is still mostly manual for high-mix, low-volume work — the roadmap puts current press-fit automation below 5% — partly because equipment-vendor ROI is thin and connector-tray packaging is not standardized. The honest version is that an automatic pin insertion machine earns its keep on volume and consistency, not on every job. Use the matrix below.

Read it as: if your monthly volume is below the half-million mark and your product mix is wide, a semi-automatic machine or even guided manual insertion may give you a better return than a full line that sits idle between changeovers.

Throughput and Cost: A Cycle-Time and Cost-Per-Thousand Yardstick

To compare machines honestly you need a yardstick that survives the sales pitch. Use cost per thousand insertions and the volume at which automation pays back.

Cost math is simple once you frame it. By published industry estimates, a fully automatic head runs roughly 7–10× the throughput of a semi-automatic one, so the labor displaced per shift is the dominant cost lever. Industry analyses commonly put the break-even for automation near 500,000 insertions per month; below that, the capital and changeover cost of a full line usually outweighs the labor it saves. Compute your own cost per thousand: divide the fully loaded hourly machine cost (depreciation + labor + maintenance) by the realistic hourly insertions, then multiply by 1,000. Factor in rework, too: documented press-fit rework methods such as US Patent 11,742,602 exist because a recoverable defect is cheaper than a scrapped assembly. Comparing two machines on that one number, at your uptime, ends most arguments.

Here’s how that plays out. A connector shop in Ohio almost bought a full inline machine for a product running 180,000 insertions a month. On paper the throughput looked great. But their mix changed every few weeks, and each changeover on the inline tooling ate most of a shift. Running cost-per-thousand at their real uptime — not the brochure’s — the semi-automatic machine came out cheaper per good part, because the inline line would have sat idle a third of its hours between connector families. They bought the semi-auto, and revisited the call a year later when one product finally settled above 500,000 a month.

“The cheapest insertion is the one you never have to rework. We size a line on first-pass yield and traceability first, then on raw cycle time — a machine that runs fast but logs nothing is a liability in an automotive audit.”

Where These Machines Earn Their Keep: Industries and Applications

One insertion platform serves very different industries, each with its own driver for automating. The pattern below maps the typical fit.

Most workshops building one connector family won’t need every row; the table is a way to locate your application and the standard your inspection should answer to — whether that’s ISO 13485 for medical or IPC/WHMA-A-620 for automotive. Exact connector formats vary by program — confirm against your own bill of materials.

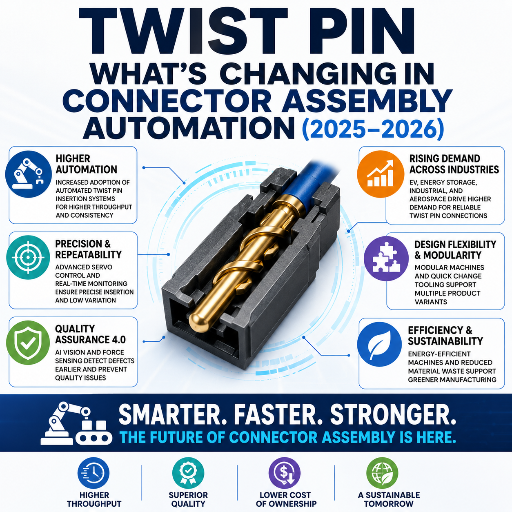

What’s Changing in Connector Assembly Automation (2025–2026)

Three shifts should change how you spec a machine this year. First, demand: the broader connector market sits near $87 billion in 2025 and industry analyses project it past $160 billion by the mid-2030s at roughly 7% CAGR, pulled by EV wiring and electronics miniaturization, per connector market analysis. More connectors means more insertions, and steady pressure on both insertion capacity and line efficiency.

Second, technology. As of 2026, real-time process monitoring, predictive maintenance, and data analytics are becoming a standard expectation rather than a premium upgrade. In practical terms, force-monitoring and per-insertion data logging are crossing from “nice to have” to table-stakes — especially as miniaturized pins get smaller and shorter, which makes manual insertion harder and pushes cycle times up an estimated 20%.

Third, standards and traceability. Automotive and aerospace QA increasingly expect a data record per insertion, and acceptance is governed by living standards like IPC/WHMA-A-620. If you are planning a 2026 line, the action is concrete: require a machine that logs the force-vs-displacement signature per insertion and exports it. Buying purely on insertions-per-hour today risks owning a fast machine that cannot prove its own quality tomorrow.
