How to Compare Connector Inspection Automation Manufacturers

Connector inspection automation manufacturers are machine builders, system integrators, inspection-system providers, vision-platform suppliers, or metrology specialists that provide equipment or engineering for automated connector inspection. Connector inspection automation manufacturers do not all sell the same scope. One company may build the complete machine, another may integrate cameras and controls, and a third may supply only the vision or measurement layer. A useful shortlist starts with the provider’s role, connector-specific public evidence, integration responsibility, and an acceptance plan, not an unexplained “top supplier” label.

Direct answer: separate complete machine builders, system integrators, vision platforms, inspection-system providers, and metrology specialists before comparing suppliers. Attribute every public claim to its owner, leave missing evidence marked as unknown, and give each candidate the same sample, interface, measurement, and acceptance brief.

Comparable, witnessed evidence under your conditions earns it a place on the final shortlist.

Separate the Provider Role Before You Compare Claims

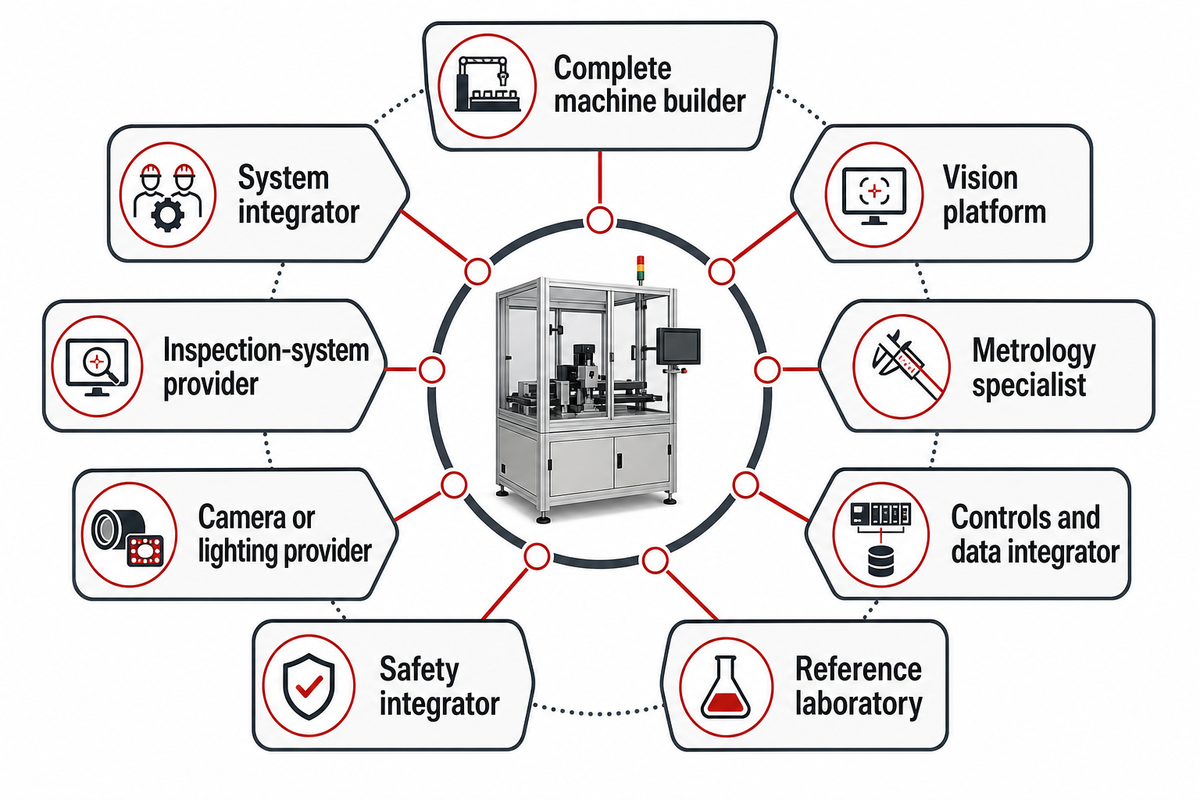

A connector inspection project can involve several provider roles, and separating them makes witnessed evidence comparable. The role map indicates what a company may own, what must come from another party, and which party should be contractually assigned to sign the combined acceptance result. Search pages often collapse those boundaries under words such as “solution” or “system.”

Machine builders may own part presentation, fixtures, motion, controls, inspection, rejection, guarding, and commissioning. System integrators may combine several suppliers around an existing line. One vision-platform company may supply imaging hardware and software while leaving feeding, motion, and overall acceptance elsewhere.

9-Role Provider Map

Translate Search Language Into a Requirement

Search phrases describe overlapping problems, not standardized equipment classes. Connector manufacturing, connector manufacturing processes, manufacturing process, manufacturing systems, manufacturing sectors, and manufacturing quality provide factory context. They don’t define who owns the inspection station.

Terms such as connector assembly, automated connector assembly, automated assembly, cable assembly, automatic connector, injection molding, and stamp usually point to upstream operations. Ask whether the inspection begins with loose contacts and pins, a molded housing, finished electrical connectors, or an installed part in an electrical system.

For the equipment itself, connector inspection system, automatic electrical connector inspection, inspection of electrical connectors, inspection of connectors, pin connector and cable inspection, inspection process, and connector inspection workflows still need a defined station boundary. “Dedicated inspection” may describe either a stand-alone machine or one dedicated recipe in a multi-application system. The phrase alone doesn’t settle integration responsibility.

Defect language must become a controlled taxonomy. Defect detection, detect defects, bent pins, detect bent pins, misalignment, and damaged connector contacts name possible checks, but the system must detect each condition against an agreed reference. Claims such as “various connector” or “every connector” aren’t measurable until the approved product family and variants are listed.

Technology language also needs routing. Machine vision inspection, automated vision, multi-camera inspection, image processing, advanced image processing, AI vision, AI inspection, AI connector inspection, and AI models describe possible methods. High-resolution, high precision, advanced inspection, inspection technologies, dimensional inspection, fiber inspection, and inspection probes need units, conditions, calibration, and a named measurand.

Finally, commercial quality wording needs an evidence test. Quality control, quality assurance, quality inspection, connector quality, connector quality control, connector reliability, reliable connector, and reliability and performance are outcomes or programs, not sensor specifications. Automation systems may help manufacturers minimize selected manual inspection, but no supplier can promise that every connector meets every requirement without a defined population and test plan.

Connector component manufacturers are another category entirely. Revenue, market share, or brand familiarity doesn’t prove that a company can engineer and accept an automated inspection cell. Classify the delivered role before comparing headline capabilities.

Public-Evidence Discovery Set of Connector Inspection Providers

The following alphabetical set identifies providers with connector-relevant public material. It’s neither a complete market map nor a capability ranking. Each row preserves the provider’s visible role, the type of public evidence, and the most important field that remains unverified.

Commercial and academic figures apply only to the named application and conditions. They show what a public record may contain; they don’t create a cross-supplier league table.

For example, a Chromasens trade report attributes 30 μm resolution, an 8.22 mm height range, and a 105 mm field of view to one connector-pin system. Those figures describe that configuration. The page doesn’t provide a controlled sample, false-accept rate, false-reject rate, or observed long-term production result.

A first-party UnitX case study reports a 7,000-part repeatability test, 0% false acceptance, no more than 0.8% false rejection, and 1 m/s fly capture for one connector application; the result has not been independently reproduced. HAHN reports a different case with 24 pins, 6 variants, and a 25 s cycle. Different parts, boundaries, and conditions prevent those records from ranking the companies.

The academic record is equally condition-bound. A KCI abstract reports 1,020 images, 20 epochs, 99.25% prediction accuracy, and up to 72,000 classifications/h for one video-derived connector-pin study. The 2026 Springer paper reports different offline results for two product-specific datasets on the authors’ stated GPU. The paper explicitly doesn’t claim full production deployment or broad cross-domain generalization.

Use the Connector-Specific Proof Grid

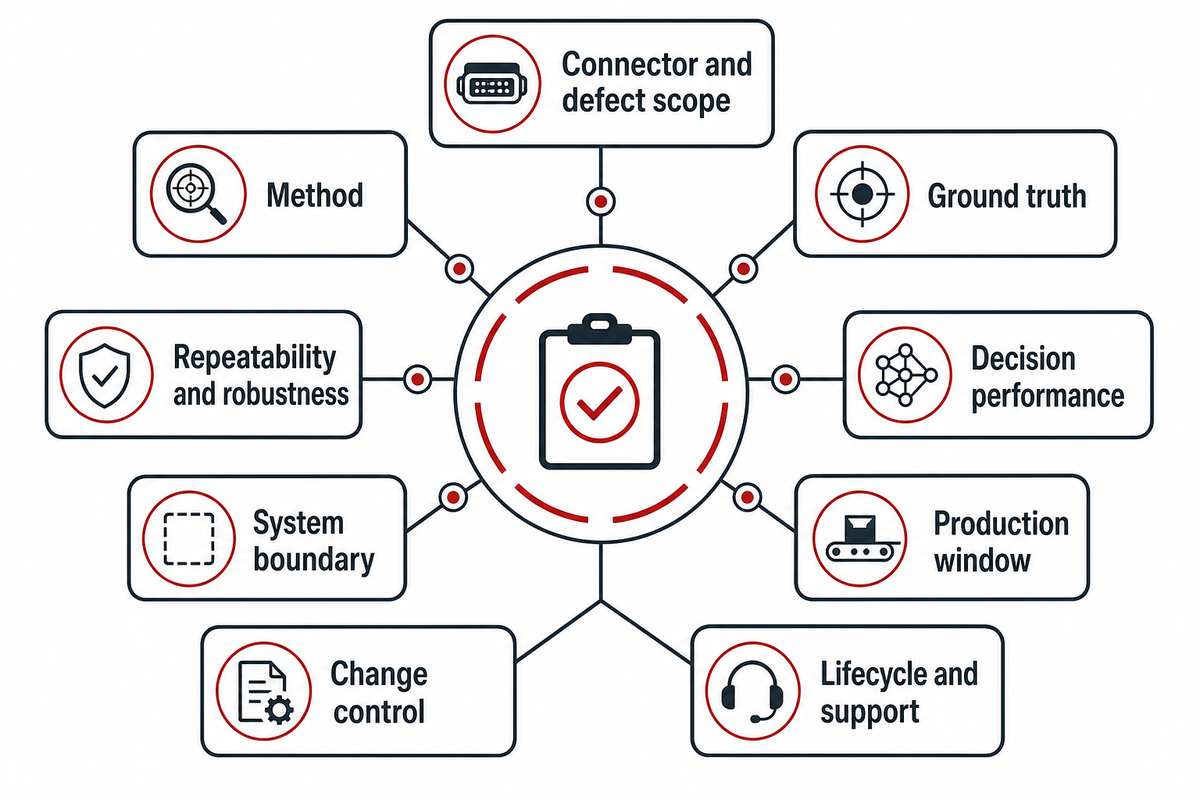

Building on that public record, the Connector-Specific Proof Grid turns brochures into small, reviewable fields without inventing a score. Populate a cell only when a source or witnessed test supports it. When evidence is absent, “Not publicly verified” is more useful than a confident inference.

The grid’s ground-truth, repeatability, and monitoring fields reflect the concerns identified in NIST guidance on validity and reliability; the guidance does not certify any supplier or production result.

Public-Claim Confidence Tags

Use five visible tags: official capability statement, public application example, quantified record, independently corroborated, and not publicly verified. The tags describe evidence status, not supplier quality. Capable providers may still keep a specific data field private or leave it untested.

Build a Six-Sample Discovery Set, Then Design Acceptance Separately

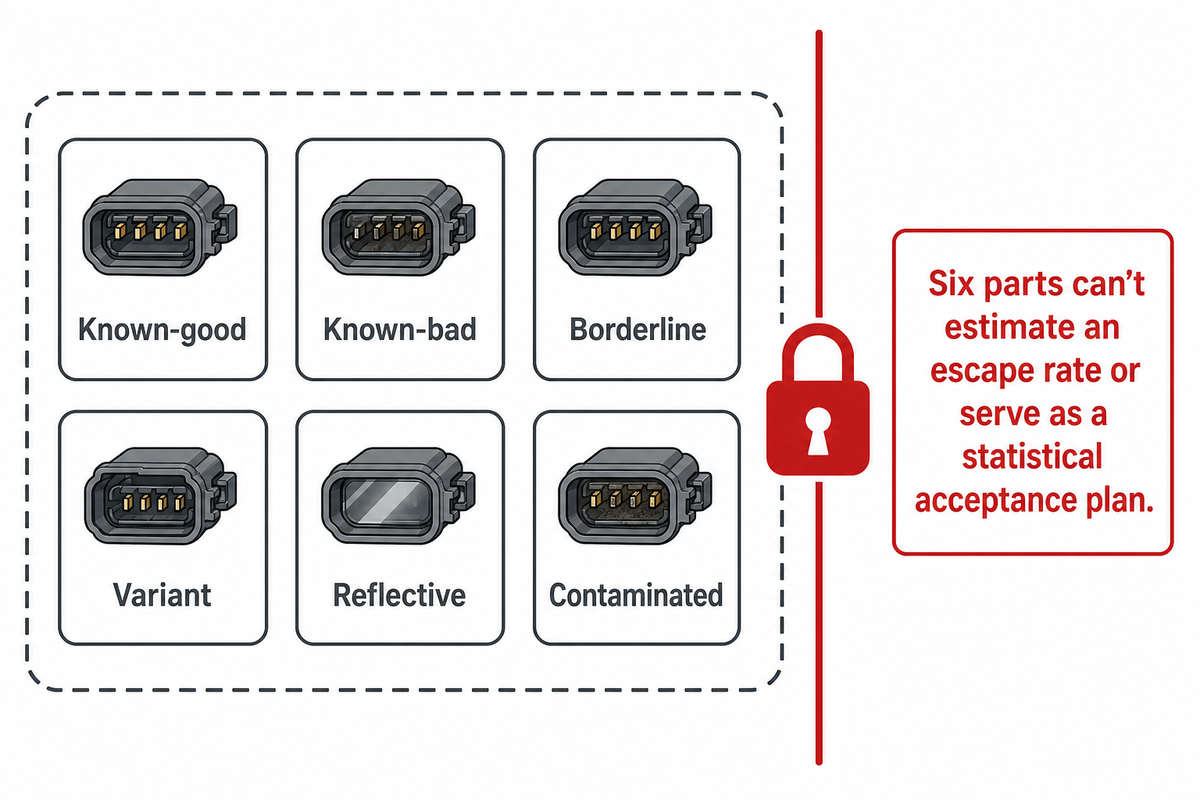

Rather than ranking providers, the Six-Sample Discovery Set uses a known-good, known-bad, borderline, variant, reflective, and contaminated part to expose obvious coverage or presentation gaps. It is an exploratory supplier-screening brief. Six parts can’t estimate an escape rate or serve as a statistical acceptance plan.

NIST Technical Note 2045, published in 2019, explains that a binary success-or-failure experiment needs a predefined performance threshold, an acceptable decision risk, a sample size, and an acceptance criterion. The current official ISO 2859-1:2026 overview likewise describes AQL-indexed lot-by-lot sampling schemes rather than a universal six-item rule.

After discovery, design the real factory and site acceptance plan around the approved population, decision risk, defect prevalence, independence rules, repeated conditions, and prespecified pass/fail logic. That polished six-part demonstration must never become an unstated production guarantee.

Keep Visual, Dimensional, and Performance Evidence Separate

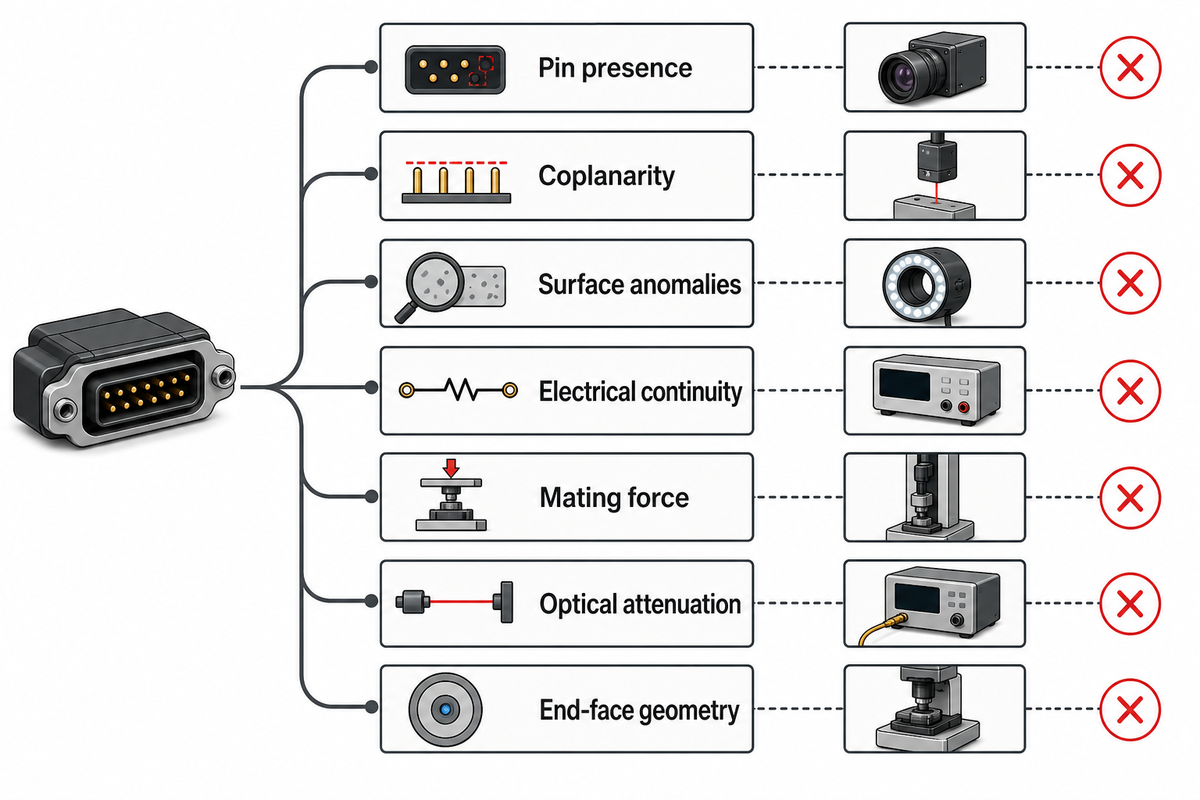

Because that acceptance plan spans more than camera evidence, a clean image proves only what the configured method can observe and decide under the tested conditions. Pin presence, coplanarity, surface anomalies, electrical continuity, mating force, optical attenuation, and end-face geometry are different measurands. They may require different references, instruments, uncertainties, and product-specific limits.

The public scope for IEC 61300-3-35:2022 says visual end-face inspection is additional to, not a replacement for, attenuation, return-loss, or end-face-parameter measurements. The same principle applies beyond fiber: a vision pass does not automatically establish mechanical retention, electrical performance, or every other conformity requirement.

Use the camera-method primer for general camera, lighting, two-dimensional versus three-dimensional, and rules-versus-artificial-intelligence education. For this supplier decision, ask which product specification controls each test and how the system handles uncertainty near dimensional limits.

Verify Integration, Traceability, Changeover, and Lifecycle Ownership

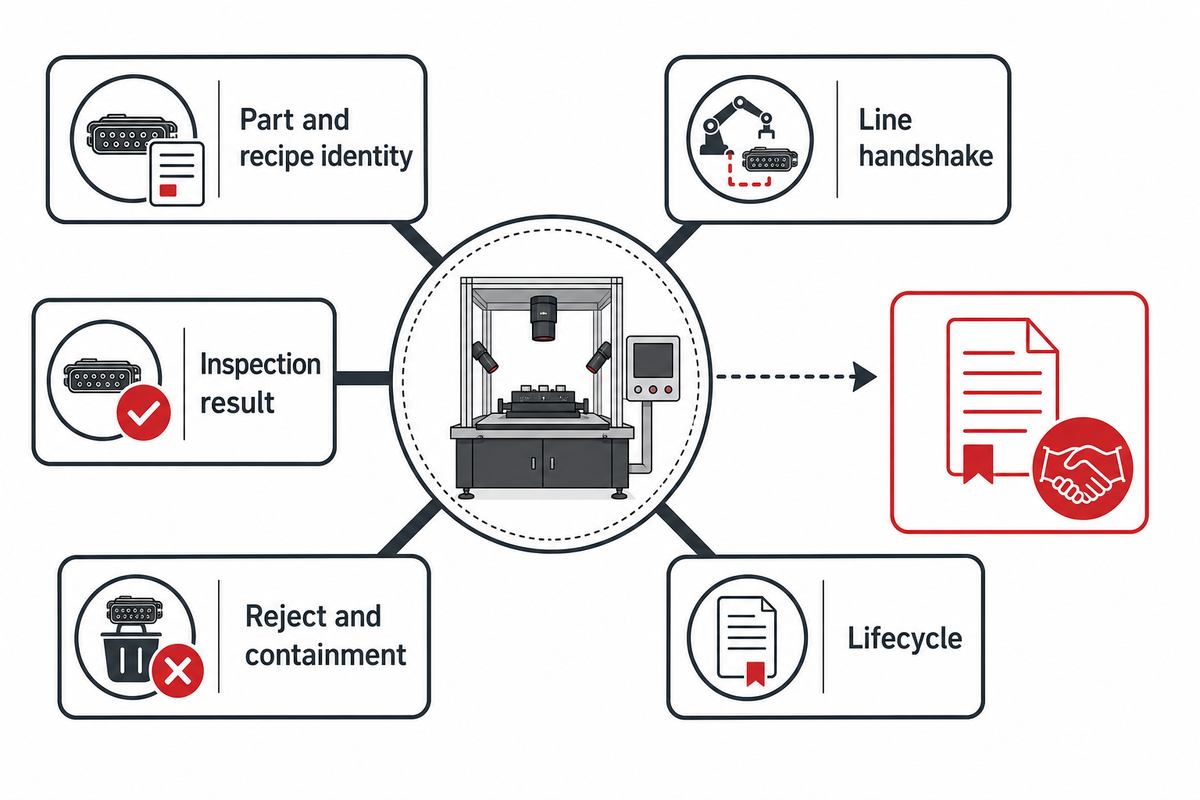

A connector inspection subsystem becomes production equipment only when triggers, part identity, recipes, motion, results, rejection, traceability, faults, recovery, backups, access, and support have named owners. Even a successful camera demonstration can leave the combined line boundary commercially undefined.

Use NIST SP 800-82 Rev. 3 to anchor the industrial-control security portion of access, remote support, backups, and recovery; it does not substitute for inspection acceptance.

Normalize the RFQ Without Inventing Benchmarks

That security and recovery boundary belongs in the same frozen technical baseline you send to every shortlisted supplier. Compare clear inclusions, exclusions, conditions, evidence commitments, and support boundaries. Lower price or faster delivery claims have no decision value when one quote covers a camera and another covers feeding through traceable rejection.

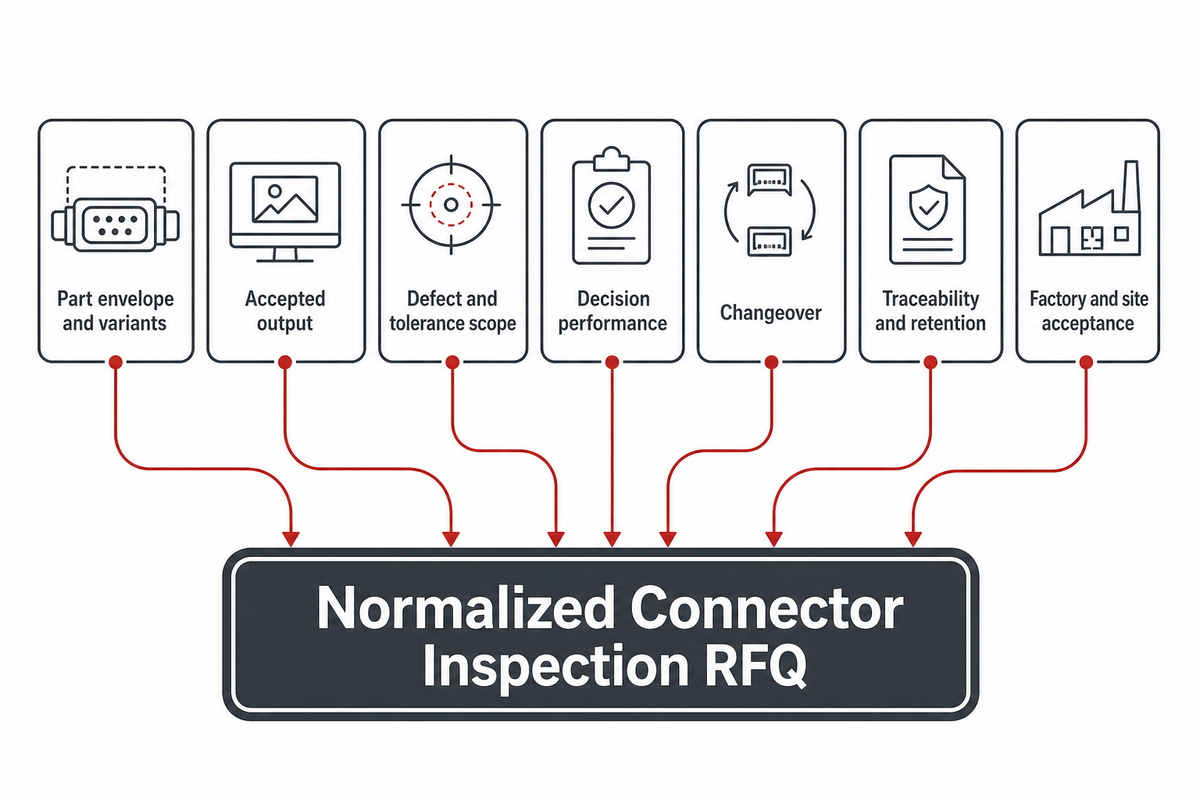

Copy the following fields into the quote-input field checklist. The “range” column purposely uses buyer-controlled units and boundaries rather than imagined universal values.

Ask each vendor to mark third-party products, software licenses, buyer-supplied items, utilities, guarding responsibility, destination-market assumptions, documentation, training, spares, remote access, and support response. Unknowns should remain visible through commercial review. For a complete optical line, use the assembly-line scope assignment guide to assign inspection alongside assembly responsibility.

Where ZEUEE Fits, and What Still Needs Project Evidence

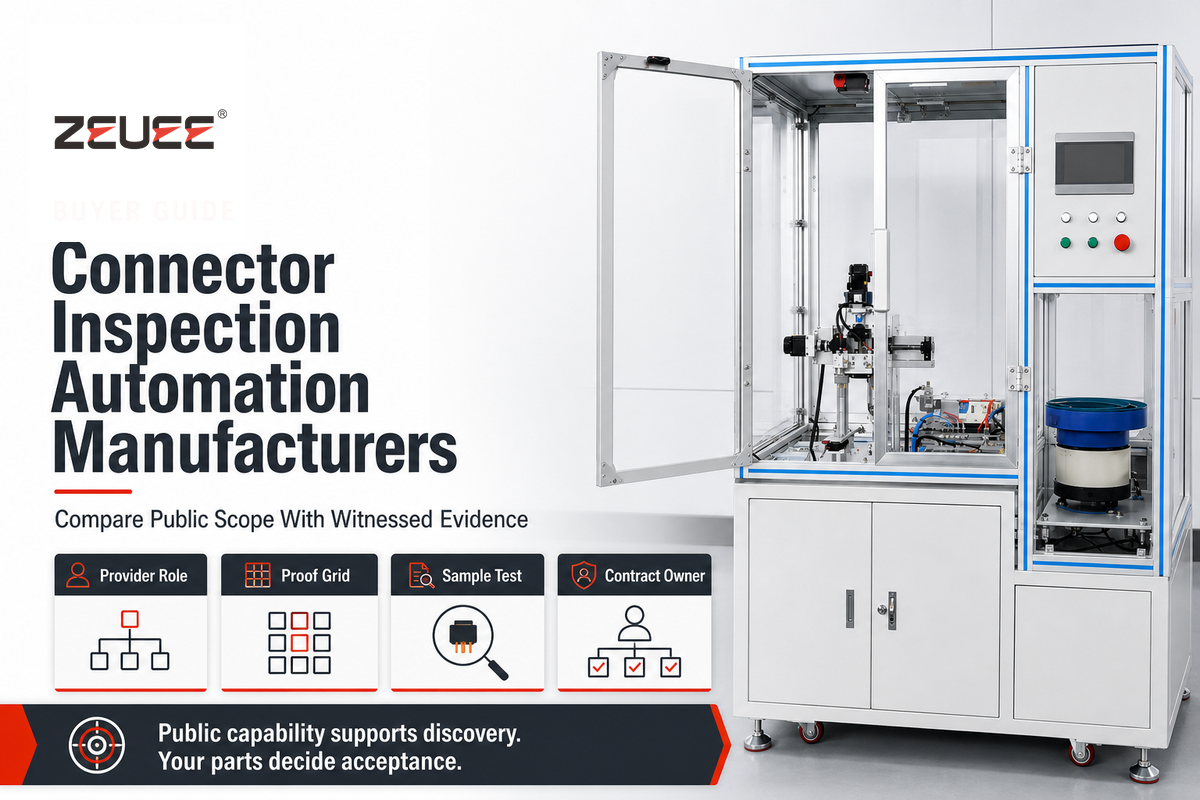

ZEUEE presents itself as a complete connector inspection automation integrator. Its first-party page describes feeding and indexing, top and side vision, optional three-dimensional profiling, surface inspection, automatic rejection, controls, manufacturing data handoff, and traceability. These are public capability statements, not independent production results.

ZEUEE was founded in 2005 and is headquartered in Shenzhen. Those organization facts provide publisher context only. General patents, certification, company size, customer names, project counts, and geographic reach do not prove connector-inspection accuracy, throughput, uptime, or acceptance on a buyer’s line.

Buyers can inspect the published inspection-cell architecture, then request a part-specific concept and witnessed evidence. The proposal should state what ZEUEE owns, which performance fields remain to be demonstrated, and how final acceptance will be separated from early discovery samples.

Ten Questions to Ask Before You Shortlist a Supplier

Use the same role, sample, defect, interface, data, and acceptance baseline for every candidate. The prompts below turn those fields into a supplier interview, so each answer can be compared with the written proposal and witnessed evidence instead of being treated as a separate sales claim. Questions about ground truth, representative testing, reliability, and monitoring can be checked against NIST’s validity and reliability guidance.

1. Which provider role are you taking, and who owns the combined acceptance result?
2. Identify the connector families, finishes, presentations, and defect classes you have actually tested.
3. How is ground truth established, calibrated, reviewed, and retained?
4. Describe your evidence for repeatability, reproducibility, and robustness across lots and shifts.
5. Define false accepts, false rejects, invalid results, and borderline decisions.
6. List the visual, dimensional, electrical, mechanical, or optical checks that remain outside scope.
7. Who owns feeding, fixtures, controls, rejection, guarding, traceability, and line handshakes?
8. Explain how recipes, changes, backups, user access, data retention, and recovery are controlled.
9. State the separate factory and site acceptance conditions that will be witnessed and recorded.
10. Identify the support, spare, training, software, and third-party obligations that survive final acceptance.

Frequently Asked Questions

Research Transparency

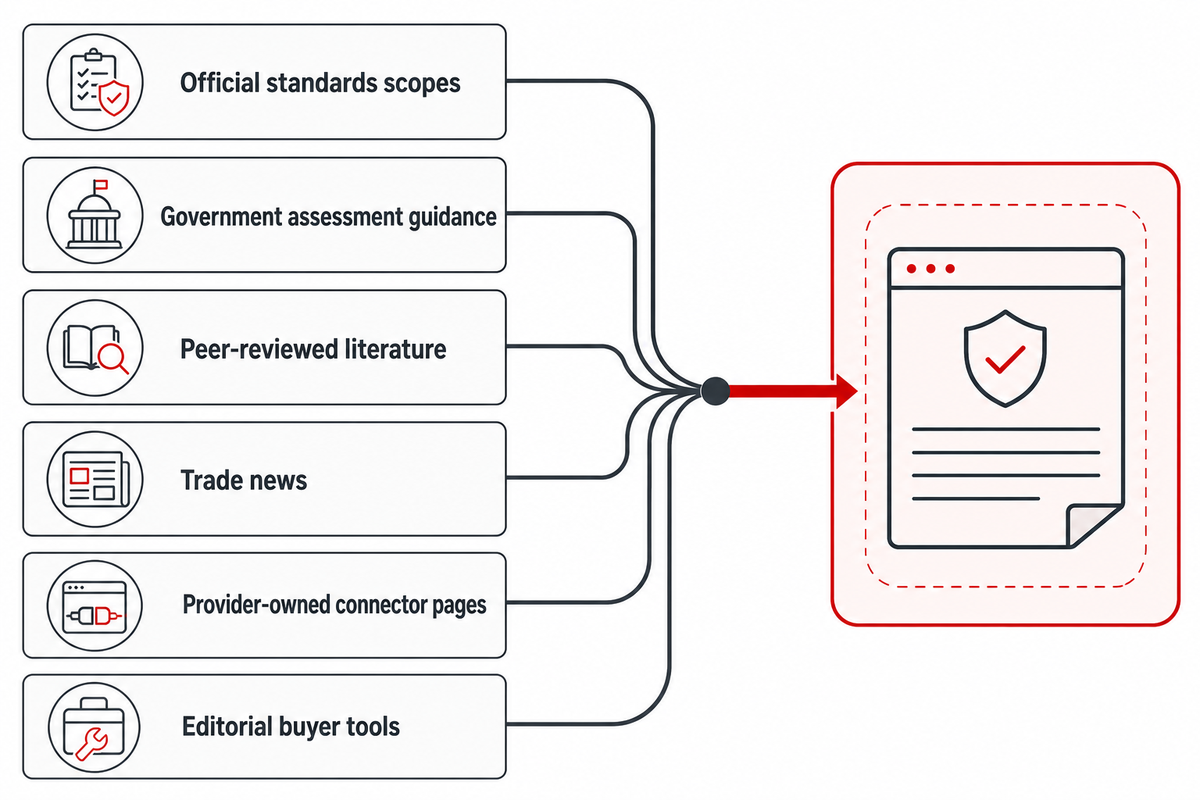

This guidance uses official standards scopes from IEC and ISO, government assessment guidance, peer-reviewed literature, trade news, provider-owned connector pages, and first-party company data. The Provider Role Map, Connector-Specific Proof Grid, Public-Claim Confidence Tags, and Six-Sample Discovery Set are editorial buyer tools. No provider ranking, private customer outcome, fabricated price, lead time, accuracy, tolerance, throughput, certification, relationship, or universal acceptance value is claimed.
